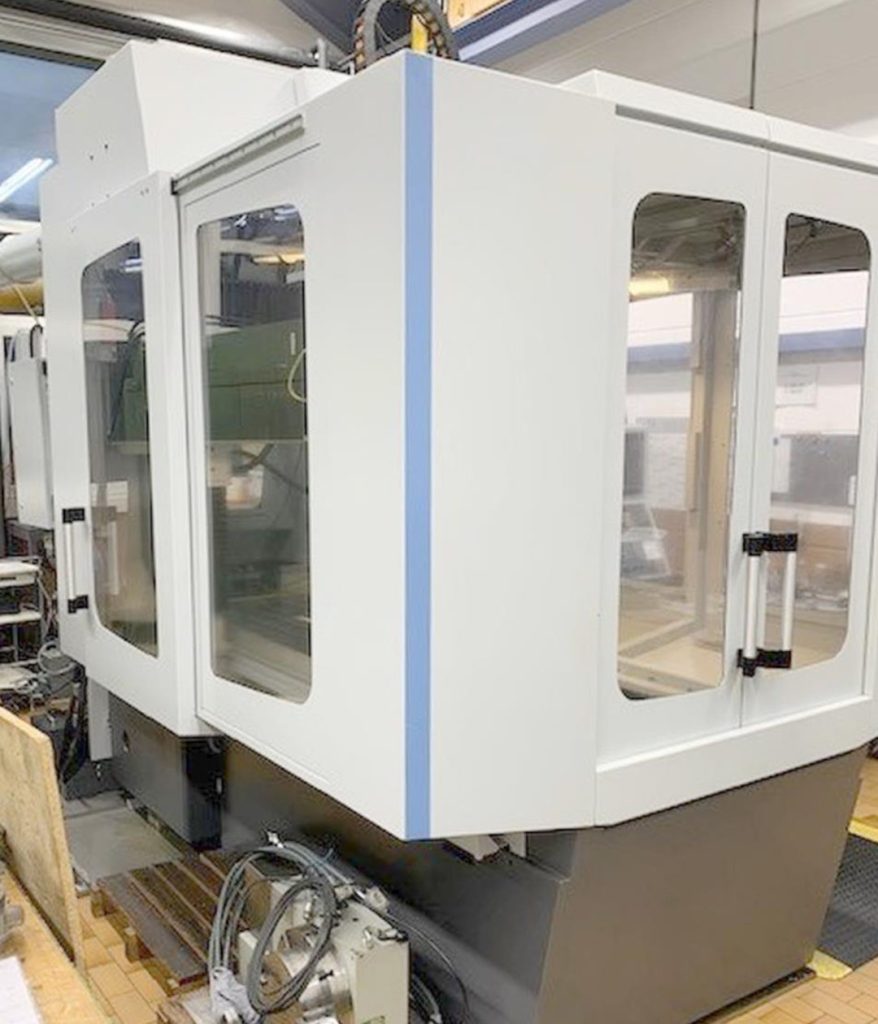

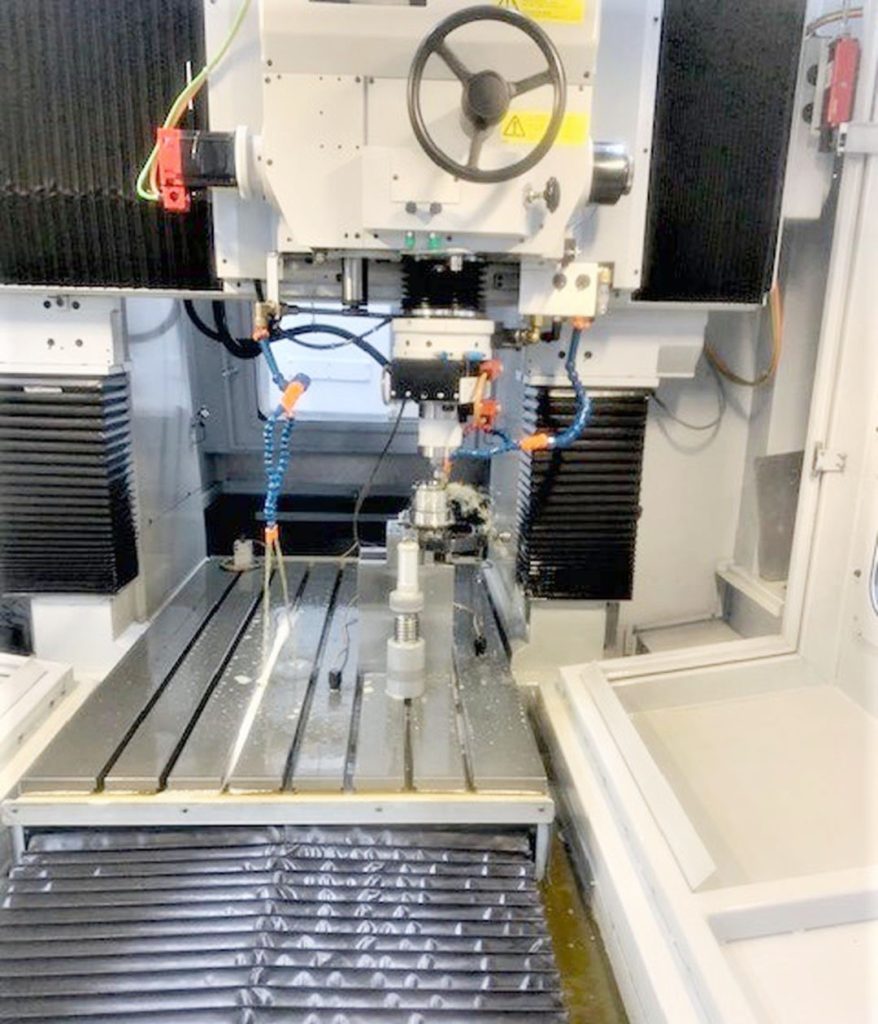

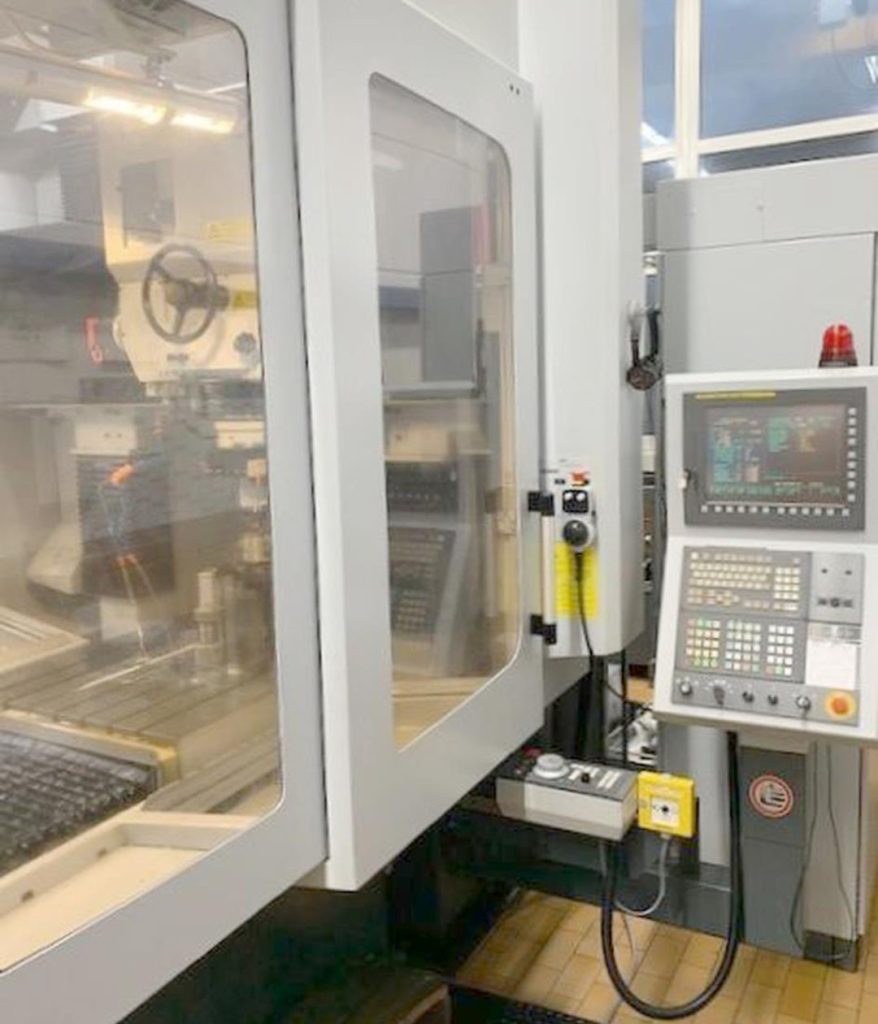

Swiss original HAUSER CNC jig grinder Type S 55-400
Posted by：EurasiacomDate Posted：2024-3

Brand：HAUSER ? Type：S 55-400? ? Category： jig grinder

Technical Parameter

Table:
??? Table length 1440 mm
??? Table width 860 mm
??? Table load max. 800 kg
Carriage:
??? Longitudinal travel (X-axis) 1300 mm
??? Transversal travel (y-axis) 800 mm
??? Vertical travel (z axis) 635 mm
Passage from grinding motor to table 0 – 750 mm
Max. grinding diameter 230 mm
??? with display-plate 360 mm
Passage between the columns 970 mm
Max. angle with taper grinding: 16 °
Stroke speed Z-Axis: Alternating stroke mouvement, infinitely adjust.
?????? from 0.5 mm/min
?????? up to 14000 mm/min
Stroke frequency Z 5 Hz
Stroke length Z, infinitely adjustable 170 mm
Radiale fine feed U-axis up to 最大 5.5 mm
Planetary motion speeds: c axis???? stepless
?????? from 5 rpm – 300 rpm
?????? up to
Possible grinding-spindle speeds:
?????? from 4500 rpm
?????? up to ?80000 rpm
With air-turbine max. 160000 rpm
Voltage 50 Hz 3x 400 Volt
Total power required 9 kW
Machine’s weight about 7000 kg
Overall dimensions machine:
??? Length 3900 mm
??? Width 2460 mm
??? Height 3000 mm
Various accessories:
CN Rotary table
Coolant system
Set of grinding arbor
Grinding motors:
??? numbers 4
?????? max. speed 22000 rpm
?????? max. speed 45000 rpm
?????? max. speed 45000 rpm
Fire extinguishing system
Oil mist extractor
  •
