Brand：SCHAUBLIN? ? Type：180-CCN? ? Category：cylindrical grinder
 |
 |
 |
 |
 |
 |
 |
Technical Parameter
| INFORMATION | |
| Manufacturing origin | Swiss |
| Voltage | 380/50/3 |
| Netweight | 2500 kg |
| Custom position | 8458.1120 |
| Capacities | |
| Maximum turning diameter | 270 mm |
| Maximum swing over carriage | 160 mm |
| Height of centres over carriage | 83 mm |
| Maximum swing over bed | 430 mm |
| Turning length between centres (according to equipment) | 630 mm |

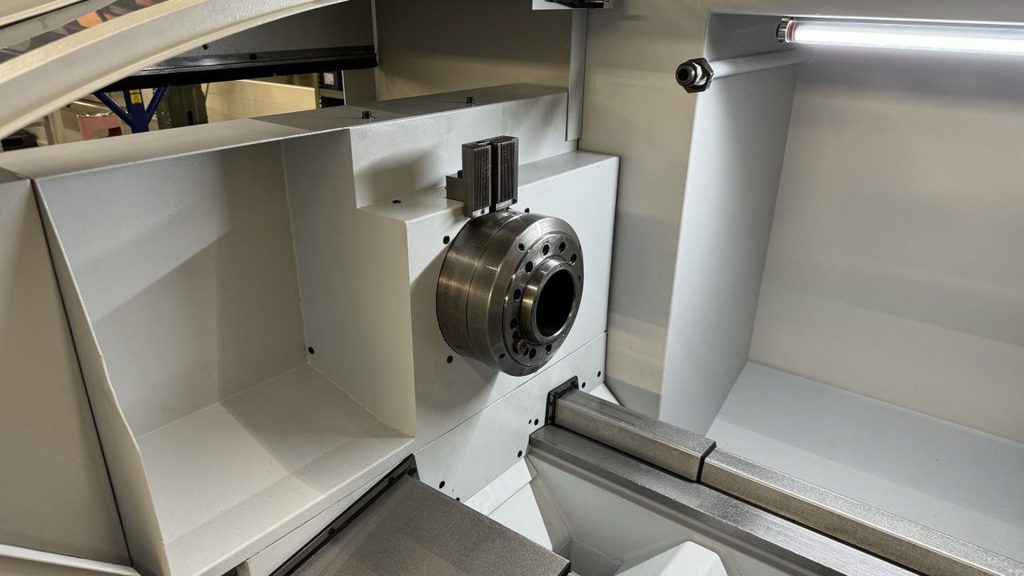

| Headstock | |
| Standardized spindle nose, for use of several collets and jaw-chucks by means of adapter sleeves | |
| Accessories for SCHAUBLIN collets | B45/F66 |
| Maximum throughbore, dia. | 36 mm/60 mm |
| Diameter of standard chck | 210 mm |
| Direct AC motor drive, power at 100%/50% duty factor | 15/18,5 kW |
| Max. torque at 100%/50% duty factor | 135/165 Nm |
| Spindle speeds, stepless | 4000 min-1 |
| Spindle positioning increment | 0,1° |
| C Axis | |
| Programmable increment | 0,001° |
| Spindle locking | 80 Nm |
| Pneumatic closing Cylinder, maximum 5 bar, maximum clamping force | 3400 daN |
| Apron and carriage | |
| Transverse stroke (X-axis) | 230 mm |
| Rsolution, on radius | 0,0005 mm |
| AC motor drive, torque | 3 Nm |
| Ball screw, dia. x pitch | 32 x 5 mm |
| Longitudinal stroke (Z-axis) | 720 mm |
| Resolution | 0,001 mm |
| AC motor drive, torque | 6 Nm |
| Ball screw, dia. x pitch | 32 x 10 mm |
| Feeds | |
| Working feeds, X-/Z-axis, stepless | 0-5000 mm/min |
| Rapid feed, X-/Z-axis | 8/10 m/min |
| Feed pressure, X-/Z-axis | 420/670 daN |

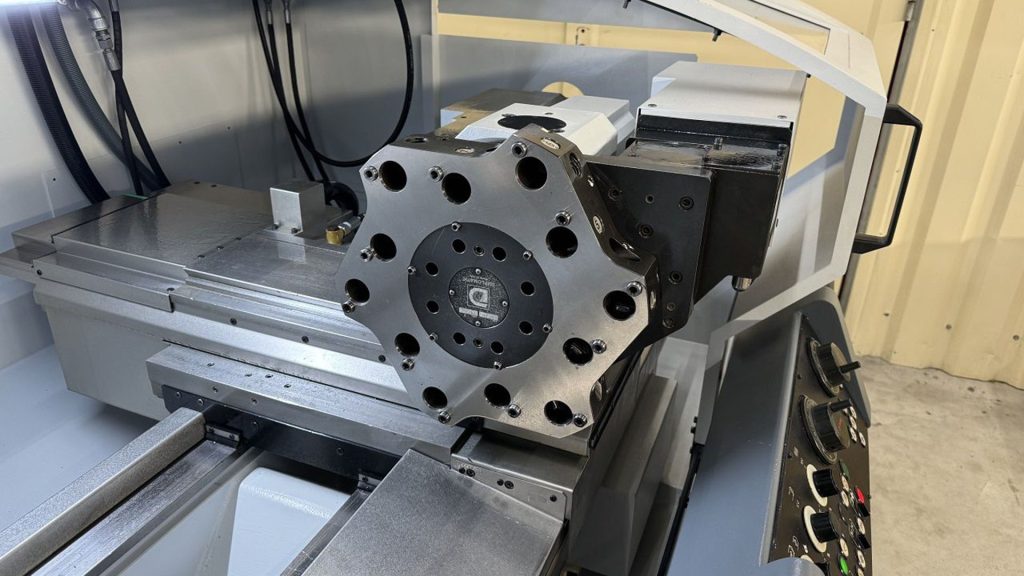

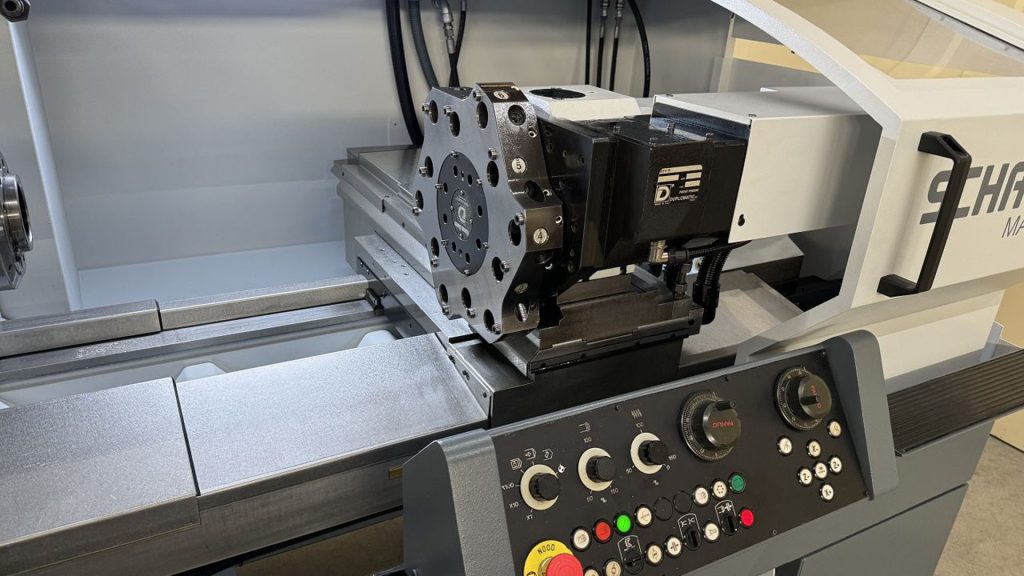

| Tooling system Turret | |
| Number of tool stations | 12 |
| Number of powered tool stations | 6 |
| AC motor drive, power in intermittent service | 3,7 kW |
| Torque max., intermittent | 36 Nm |
| Speed drive, max. | 5000 min-1 |
| Standardized fixing of toolholders | VDI 30 |
| Maximum tool size | 20 x 20 mm |
| Integrated cooling | |
| Indexing in both senses of rotation | |
| Coolant supply | |
| Capacity of coolant tank | 120 litres |
| Pump power | 10 l/min |
| Pressure | 5 bars |
| errors and omissions excepted data gived without obligation | |
| Weight | 2700 kg |
| Etat | Opportunity |
