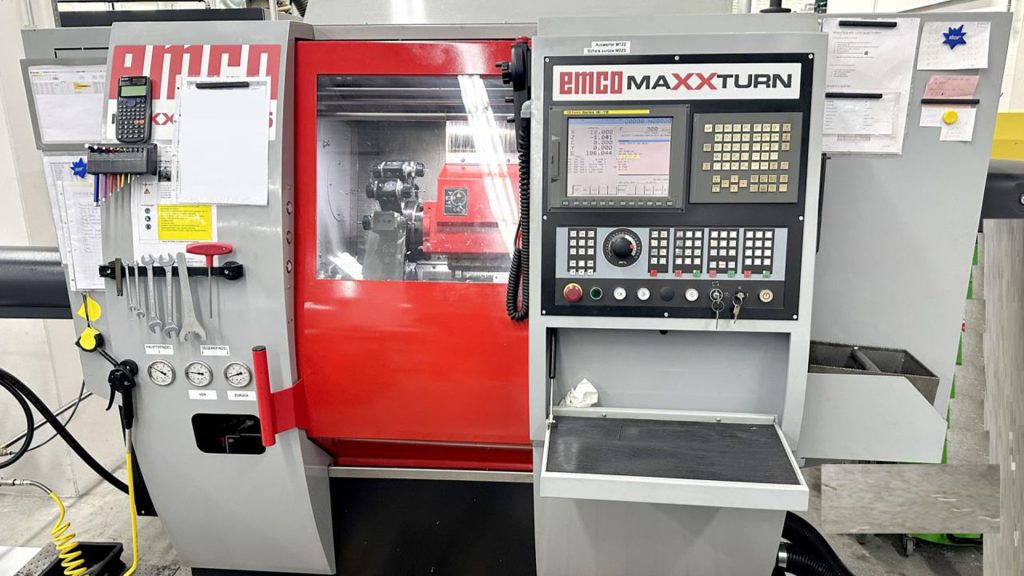

Brand：EMCO ? Type：MAXXTURN 45 SMY ? Category：CNC turning lathe
 |
|
 |
 |
 |
 |
 |
 |
 |
|
 |
|
 |
|
 |
|
 |
|
Technical Parameter
| Machine’s group | CNC turning lathe | |
| Type | EMCO MAXXTURN 45 SMY | |

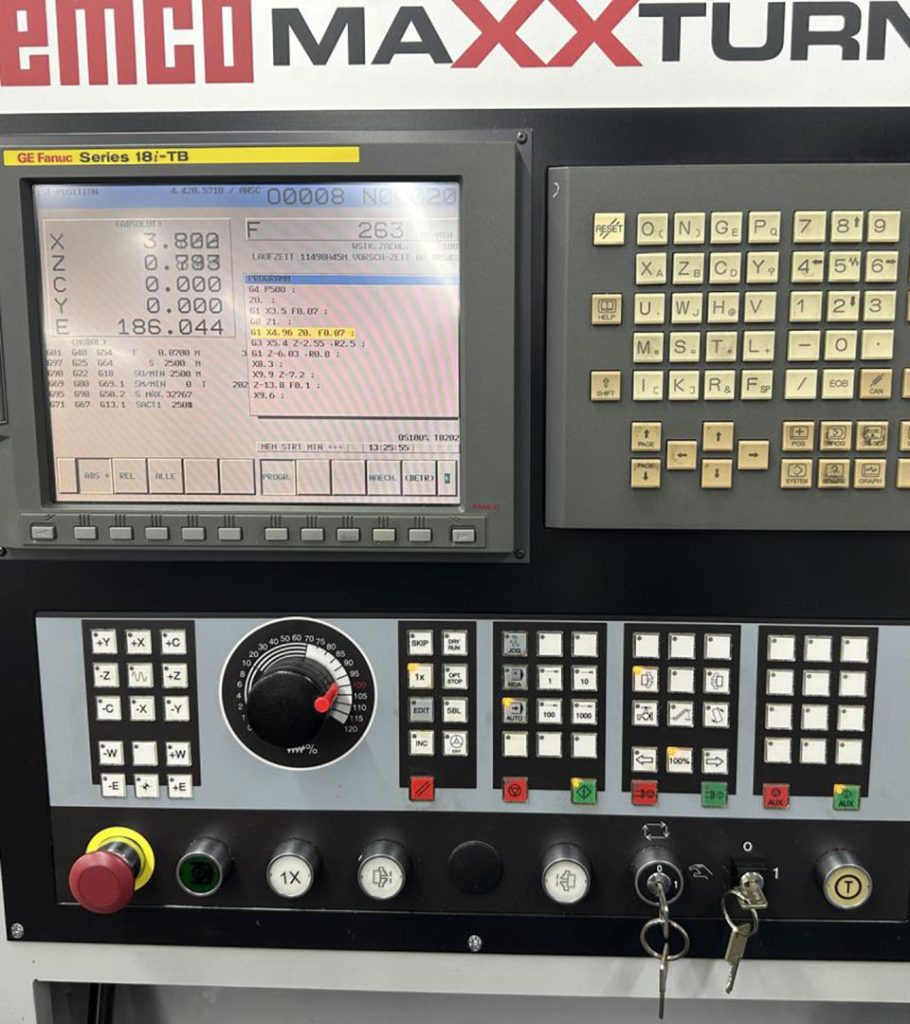

| Controller | GE FANUC Series 18i-TB | |
| Number of spindles | 2 | |
| Number of revolvers | 1 | |
| Swing over cross-slide | 300 mm | |
| Swing diameter over bed | 430 mm | |
| distance between spindles | 720 mm | |
| Max. bar diameter | 45 mm | |
| Turret carriage | Travels | |
| Longitudinal travel (Z-axis) | 510 mm | |
| Transversal strocke (X axis) | 160 mm | |
| Transversal travel (y-axis) | +40 / -30 mm | |

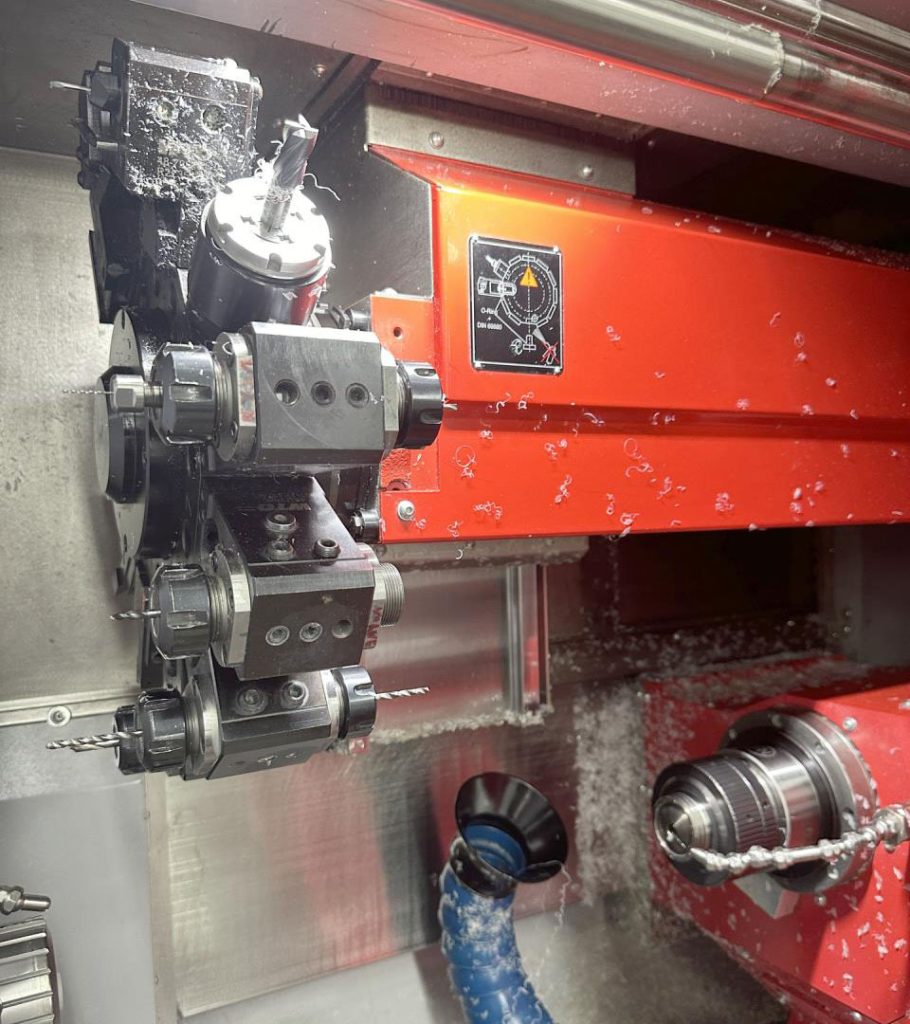

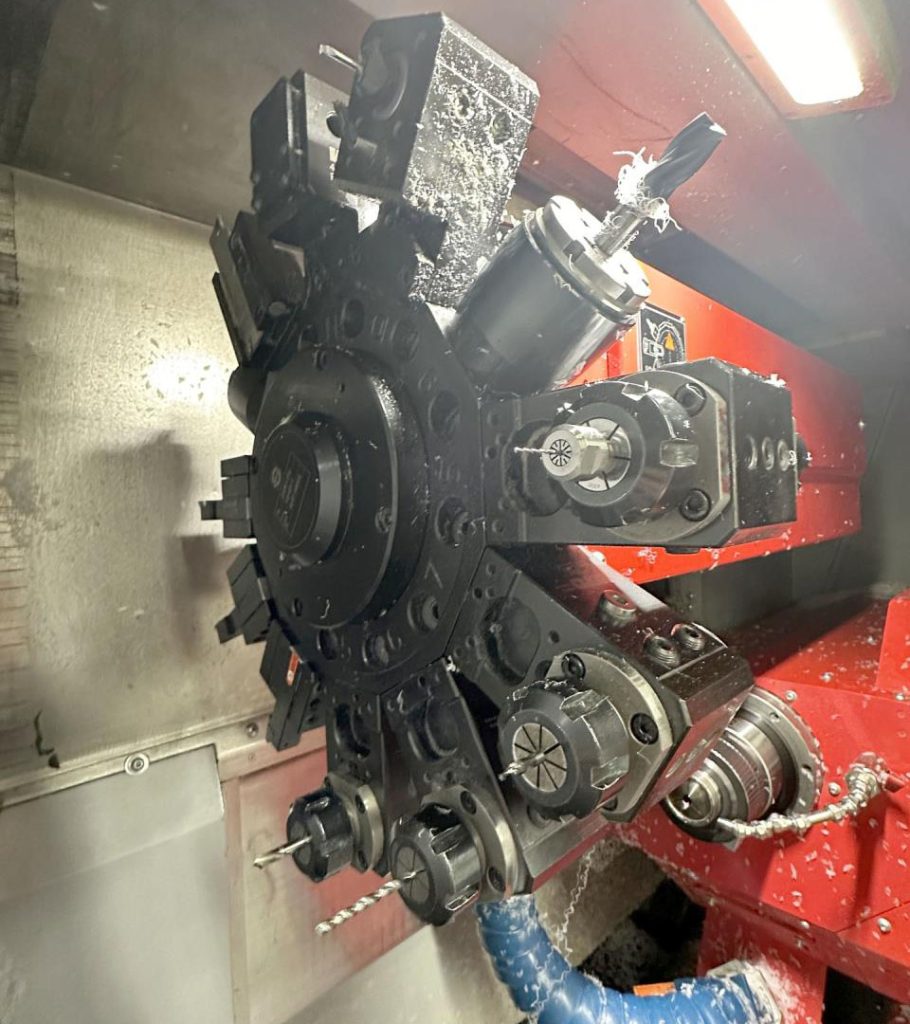

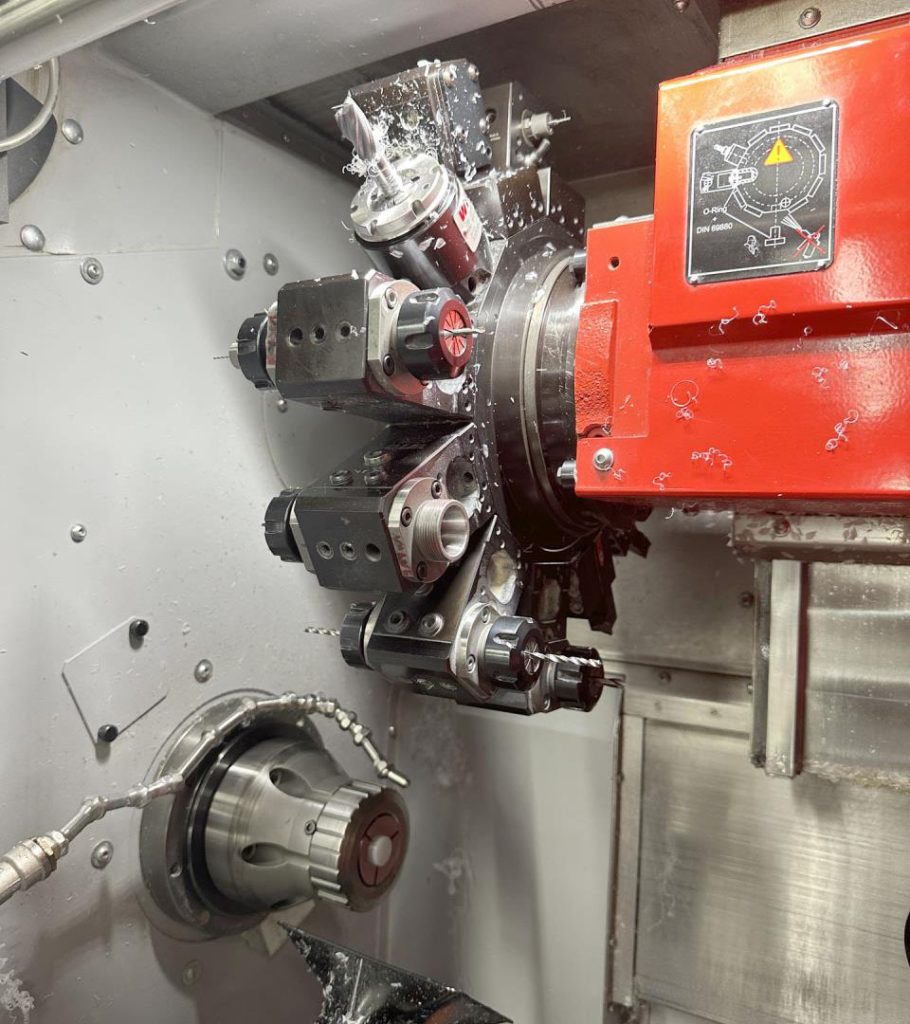

| Turret slide | ||
| Number of positions | 12 | |

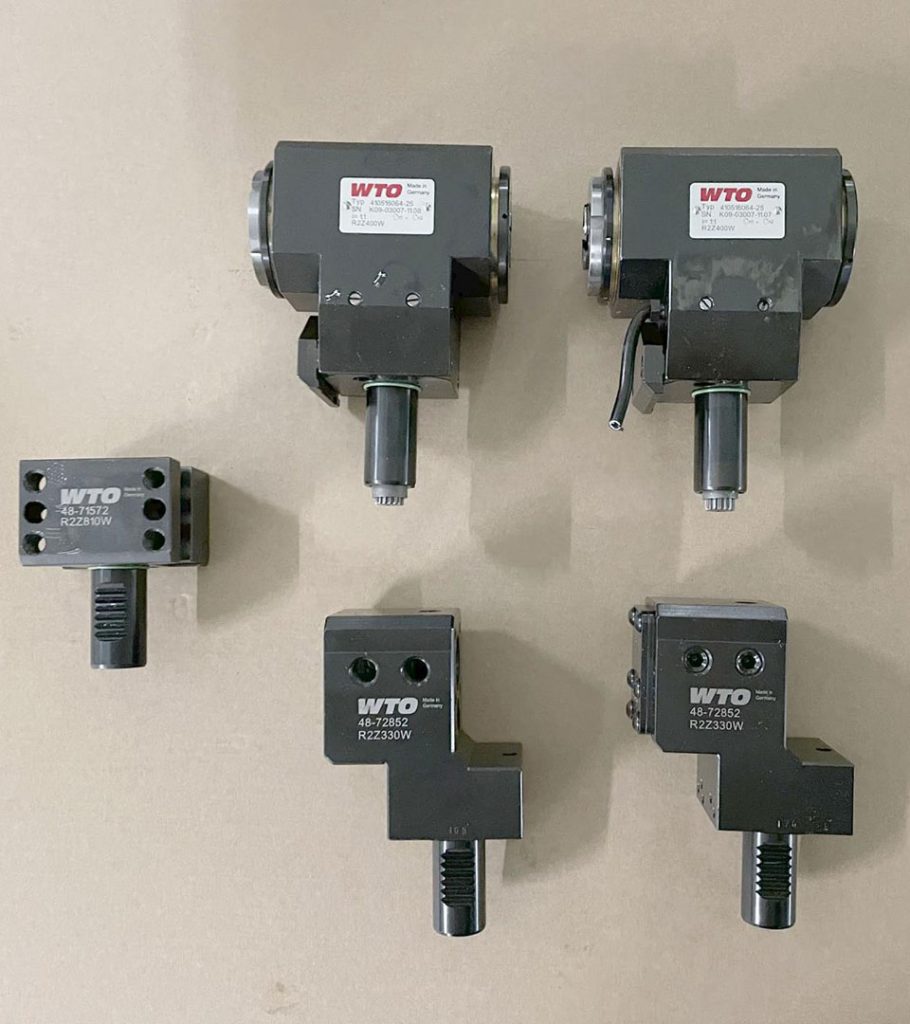

| Driven tools turret | 12 | |
| Spindle speeds | 6000 rpm | |
| Tool shank cross section | 16 mm | |
| Power of driven tools | 4 kW | |
| Torque max. | 16 Nm | |
| Spindle nose | VDI 25 | |
| Indexing time | 0.2 sec | |
| Main spindle | ||
| Taper in spindle | DIN 55026 KK5 | |
| Internal spindle diameter | 42 mm | |
| Inner taper type | F48 | |
| C axis (spindle,resolution) | 0.01 ° | |
| Spindle speeds | ||
| stepless | from 0 rpm up to 6300 rpm | |
| Spindle power | 13 kW | |
| Torque max. | 78 Nm | |
| Back spindle | ||
| Taper in spindle | DIN 55026 KK4 | |
| max. speed | 6300 rpm | |
| Inner taper type | W31.75 | |
| Power of back spindle | 7.5 kW | |
| Spindle torque | 43 Nm | |
| Air connect | 6 bar | |
| Voltage | 50 Hz 3x 400 Volt | |
| Total power required | 25 kVA | |
| Machine’s weight | about 4500 kg | |
| Overall dimensions machine | Length 2575 mm Width 1760 mm Height 2000 mm | |
| Various accessories | ||

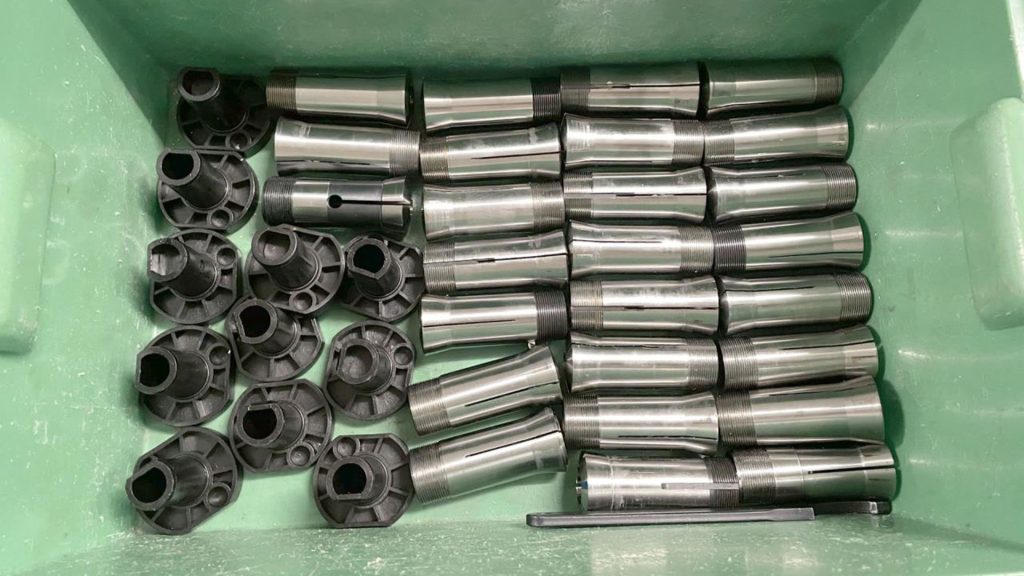

| Set of collets | W31.75 | |
| Lamp | ||
| Spindle blow out (backspindle) | ||
| Coolant system | ||
| Preparation for aspiration | ||

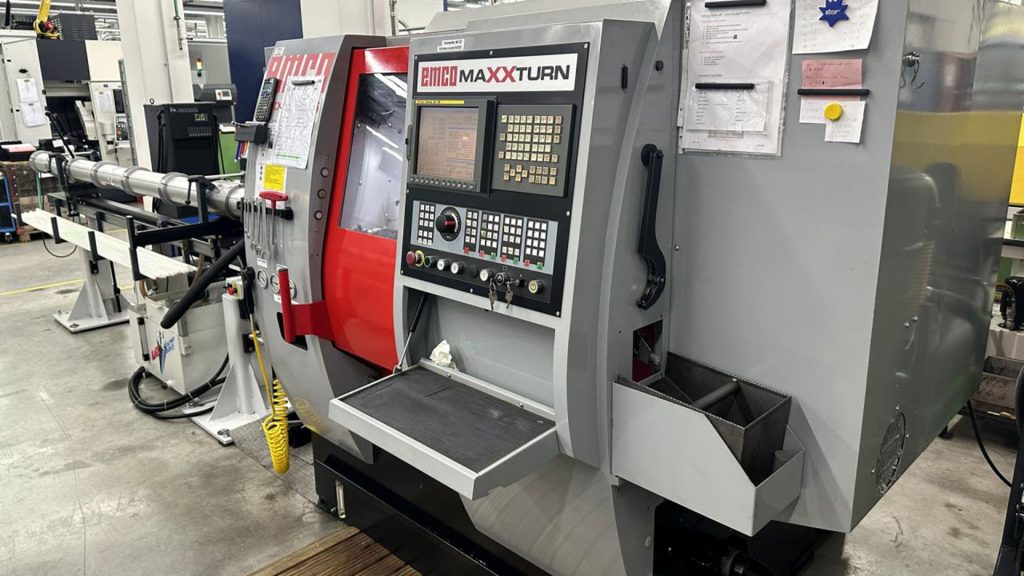

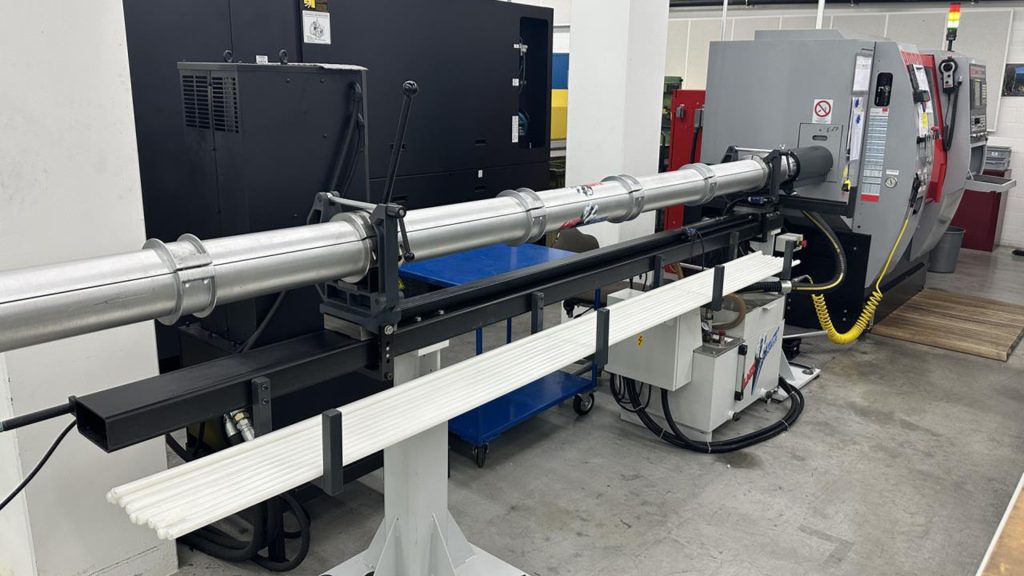

| Bar feeder LNS | ||
| Type SUPER HYDROBAR | ||

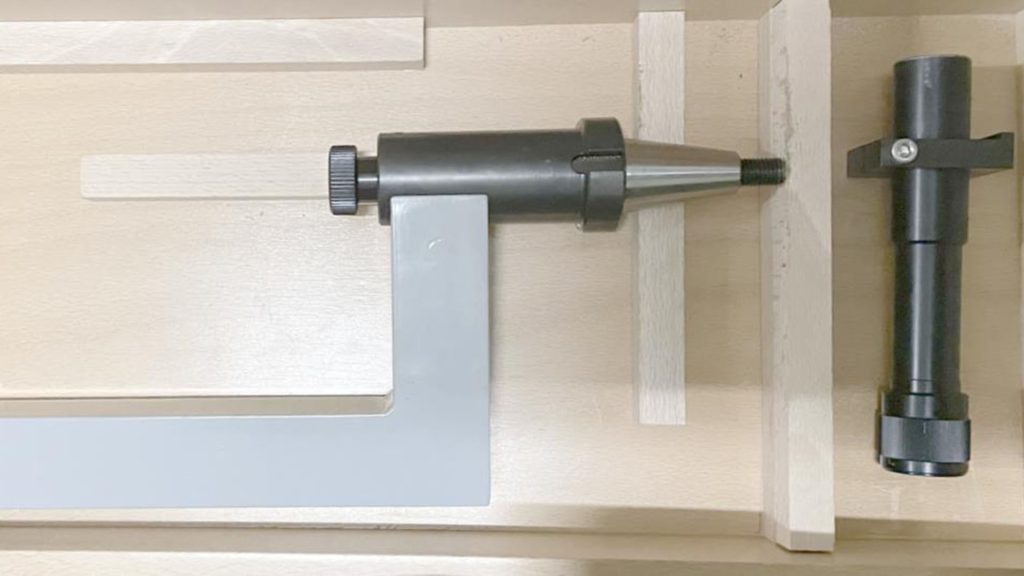

| Centering microscop | ||
| Pneumatic part gripper | ||
| Set of toolholders | ||

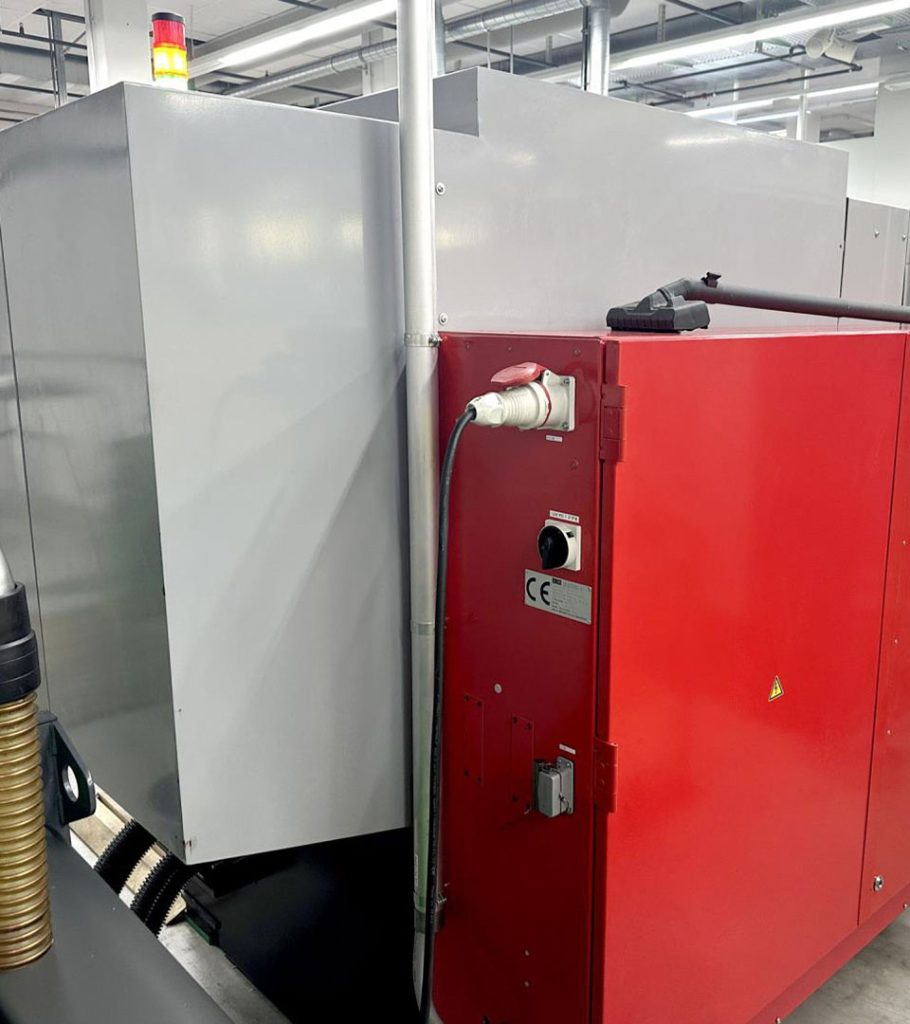

| Switch cabinet Air conditioner | ||
| Status light |
