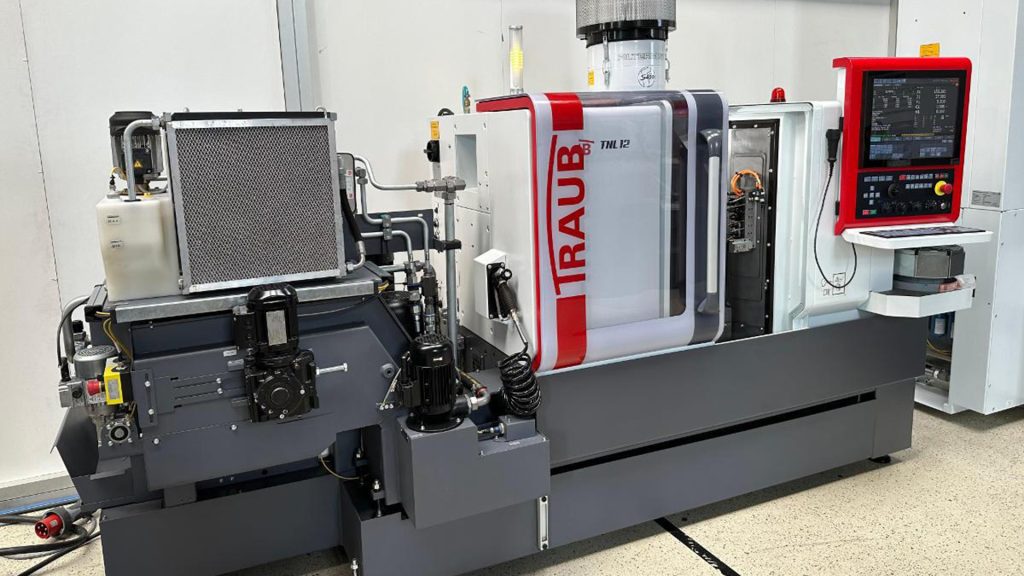

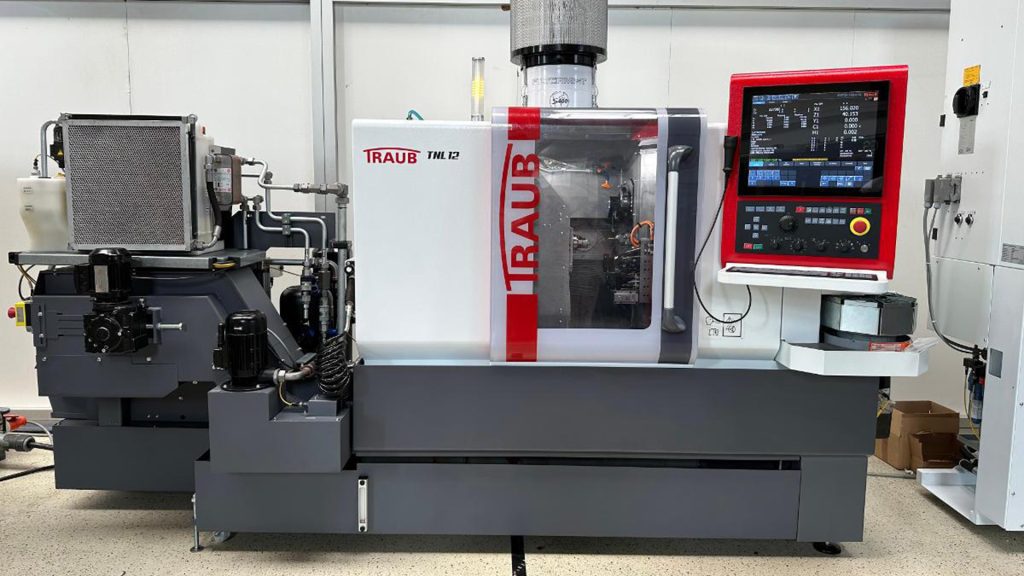

Original imported Traub CNC lathe from Germany
Posted by：EurasiacomDate Posted：2024-6

Brand：Traub? ? Type：TNL 12? ? Category：CNC lathe

Technical Parameter



Main spindle
Technology Motor spindle
Spindle passage 13 mm
Speed 12,000 rpm
Power 4,4 kW
Torque 8.6 Nm
C-axis 0.001
Z-axis 130 mm
Sub spindle
Technology Motor spindle
Spindle passage 13 mm
Speed 12,000 rpm
Power 4,4 kW
Torque 8.6 Nm
C-axis 0.001
Y-axis 152 mm
Z-axis 30 mm
Tool carrier I (X/Y/Z/H)
Technology Tool turret, 6 stations
Tool drive 12,000 rpm, 2.1 kW
X-axis 38 mm
Y-axis +/- 25,4 mm (interpolating)
Z-axis 51 mm
Rapid traverse X/Y/Z 25 m/min
Tool carrier II (X/Z)
Technology Front attachment, 4 stations
X-Axis 330 mm
Z-Axis 152 mm
Tool drive station 1, 4 12,00 rpm, 2 Nm
Tool drive station 2,3 9,000 rpm, 3 Nm
High-frequency spindle 60,000 rpm
Tool carrier III (X/Y/H)
Technology Tool turret, 6 stations
Tool drive 12,000 rpm, 2.1 kW
X-axis 38 mm
Y-axis 25.4 mm (interpolating)
Rapid traverse X/Y/Z 25 m/min
Tool carrier IV (X)
Technology Backing attachment, 6 stations
Tool drive station 1, 4 12,00 rpm, 2 Nm
Tool drive station 2,3 9,000 rpm, 3 Nm
Workpiece removal Station 7
High-frequency spindle 60,000 rpm
Equipment
Chip disposal Chip conveyor
Coolant supply IKZ system, 120 bar
High-frequency spindle 2x preparation on front and rear attachment
Fire extinguishing system Kraft + Bauer
Oil mist separator Mechanical
Electronic gear Polygonal turning, thread and gear milling
Software WinFlex IPS Plus
Software package I Milling
Software package II Traub WinGravur
Software package III Streamline milling
Bar feeder preparation, interface
  •
