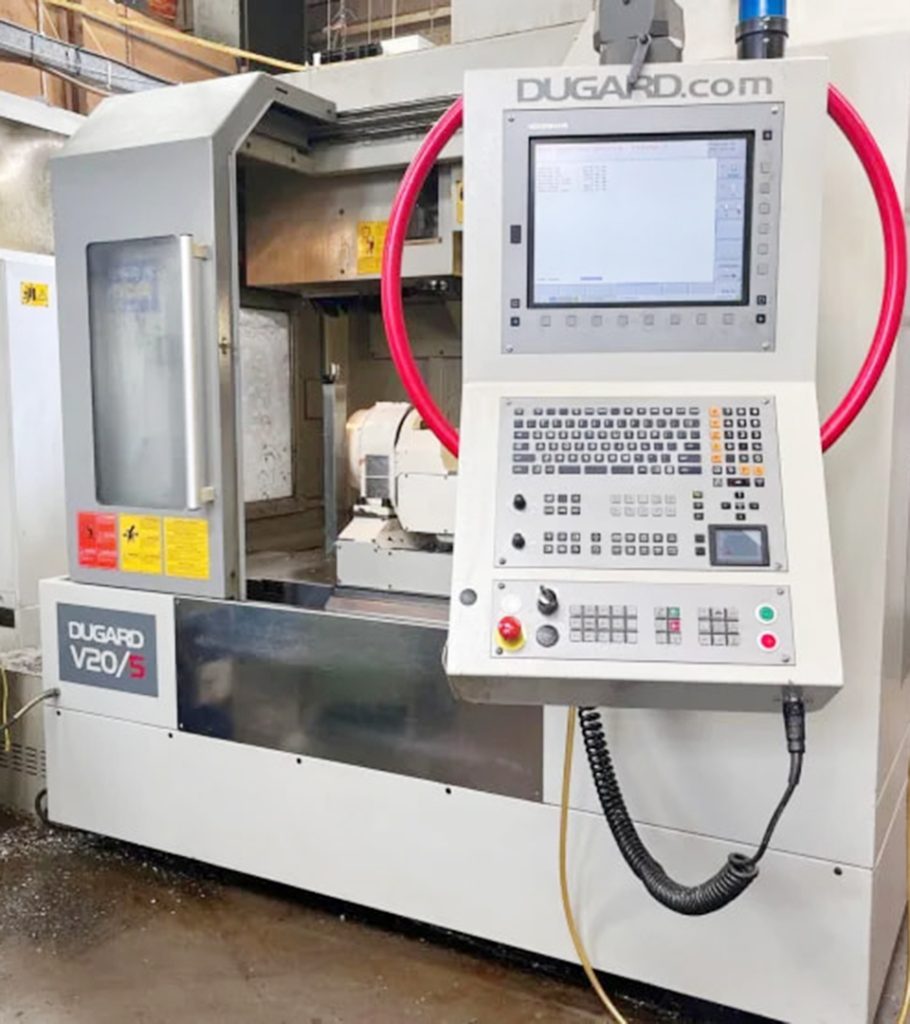

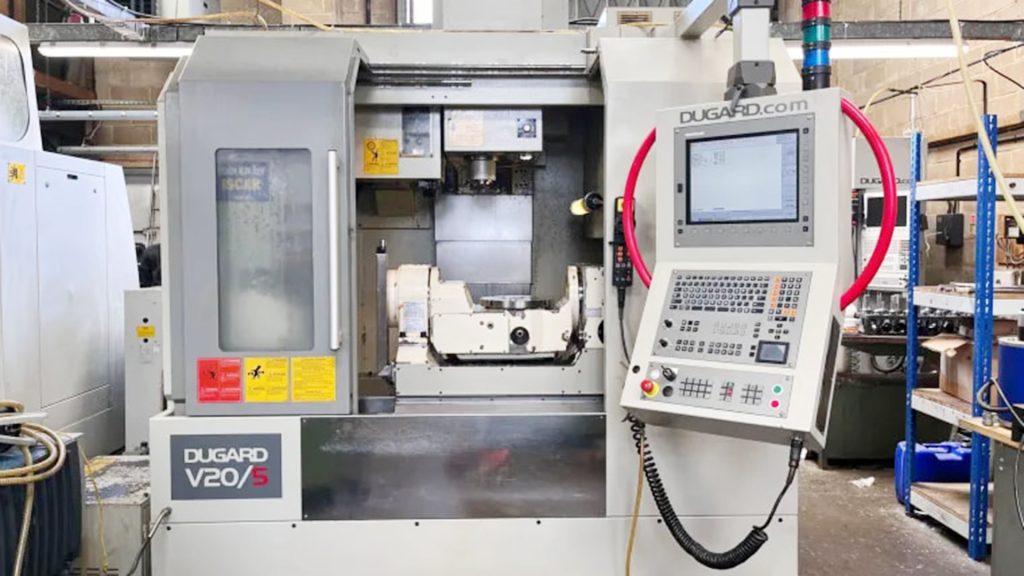

DUGARD Microcut V20/5 5 Axis Vertical Machining Centre

Posted by：EurasiacomDate Posted：2024-6

Brand：DUGARD? ? Type：Microcut V20/5? ? Category：Vertical Machining Centre

Technical Parameter

Manufacturer	DUGARD
Model / Type	Microcut V20/5
Technical details
z-motion	400 mm
max. workpiece weight between centers	100 kg
x-motion	400 mm
y-motion	560 mm
control	Heidenhain iTNC530
table surface area l x w	?320 mm
taper	BT40
toolchanger positions	24
power capacity – spindle	20 kW
turning speed range	20 – 12000 rpm
rapid motion	48 m/min
weight approx.	5,000 kg

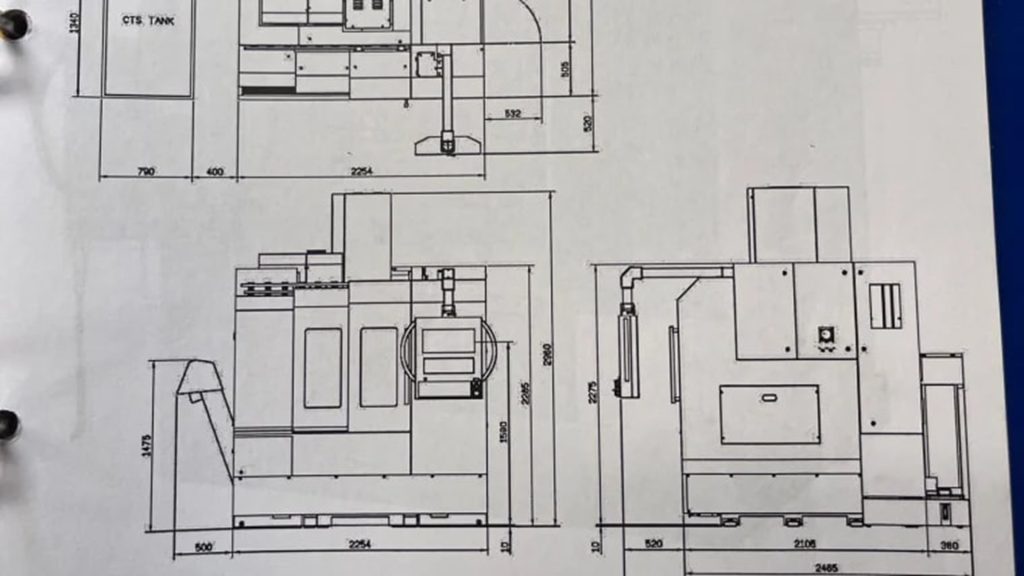

Approx. Onsite Dimension. (l x w x h)
2,254 x 3,050 x 3,000 mm
Item description
Specifications
Distance Spindle Nose to Rotary Table	400 mm
Tool Selection	Arm
Max Tool Diameter	75 / 125 mm
Max Tool Length	300 mm
Max Tool Weight	7 kg

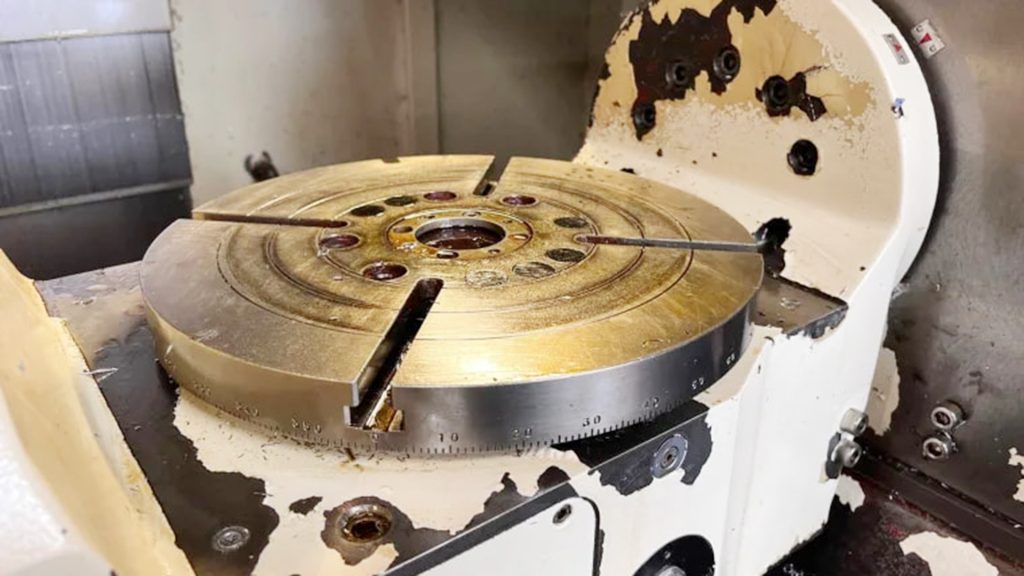

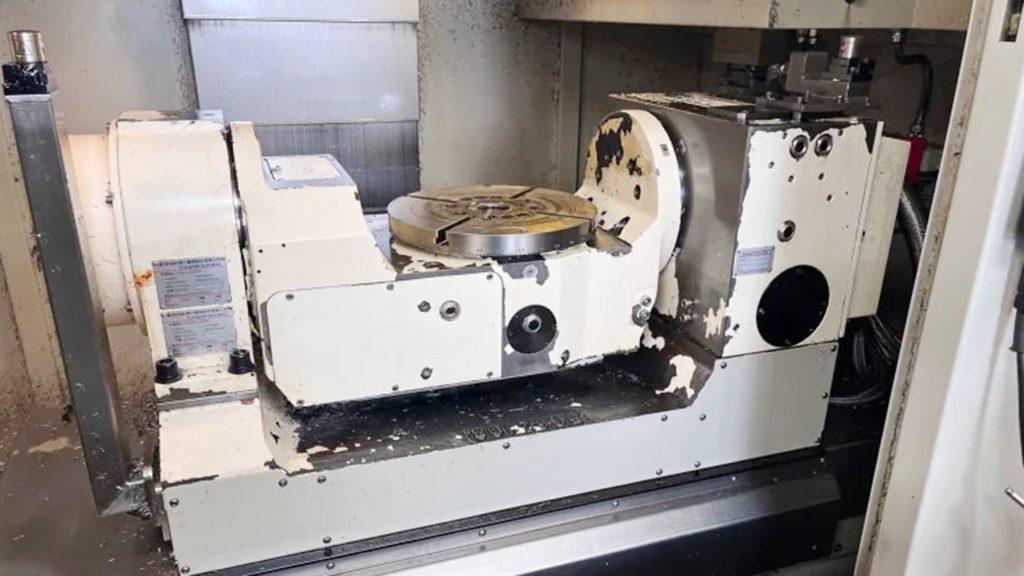

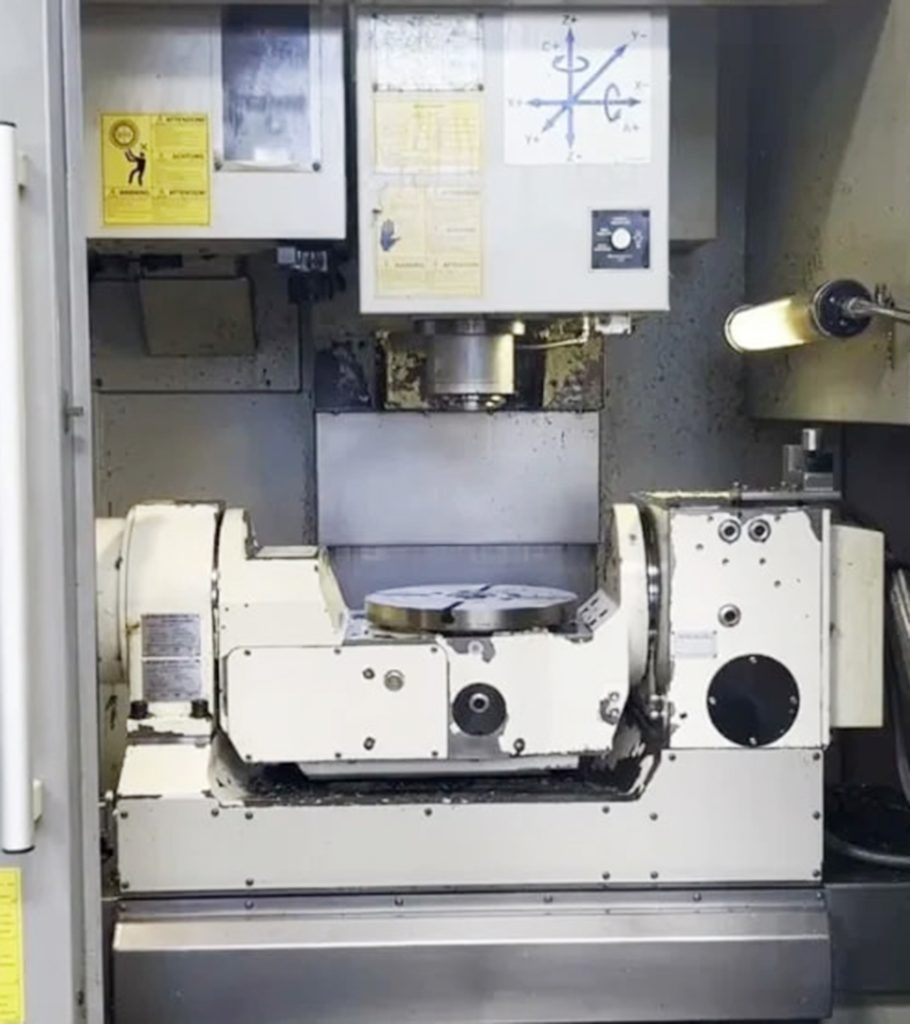

High Dynamic Rotary Table
Model	DETRON GF255 h
Tilting Axis A	+120 / -30 degrees
Rotary Axis C	360 degrees
Additional Features
T-Slots	12H7
Tool Setting System	RENISHAW NC4 Non-Contact
