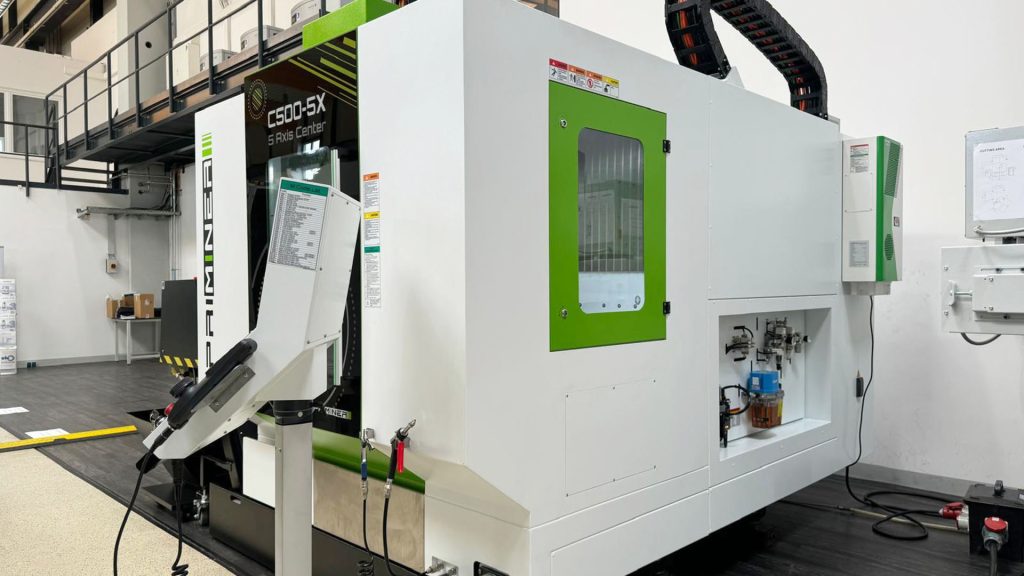

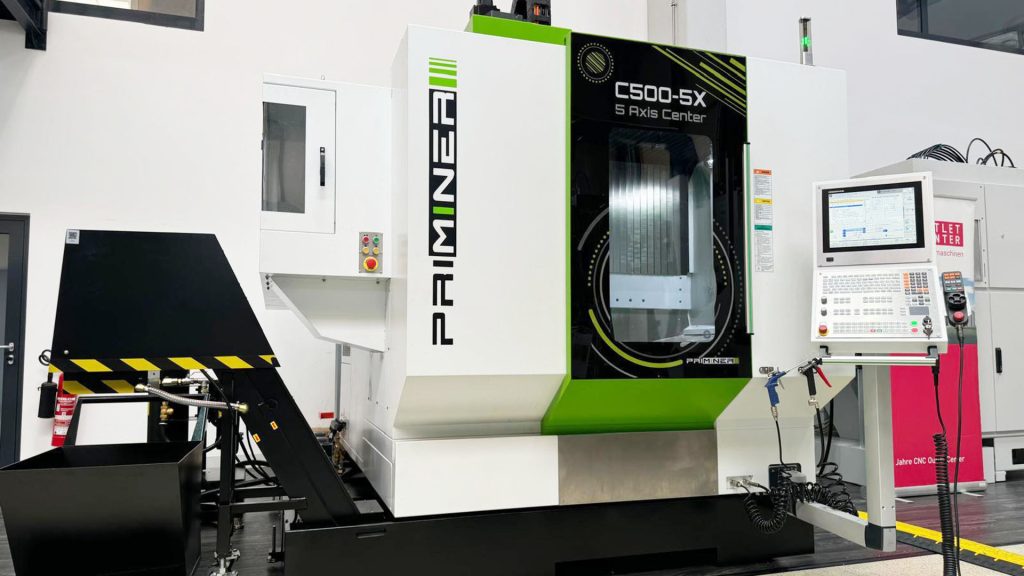

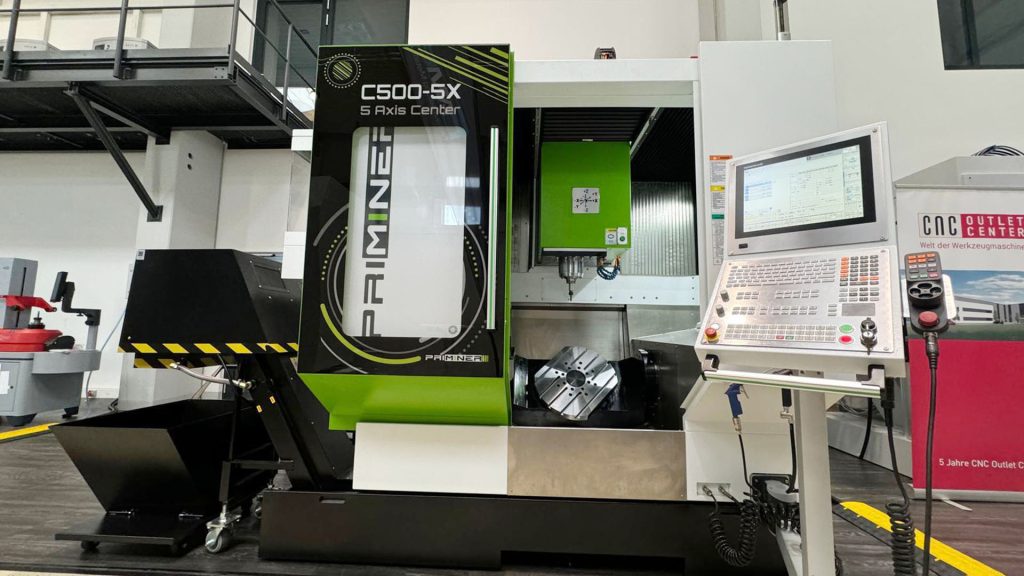

Priminer 5-axis machining centre type C 500-5X

Posted by：EurasiacomDate Posted：2024-8

Brand：Priminer? ? Type：C 500-5X? ? Category：machining centre

Technical Parameter

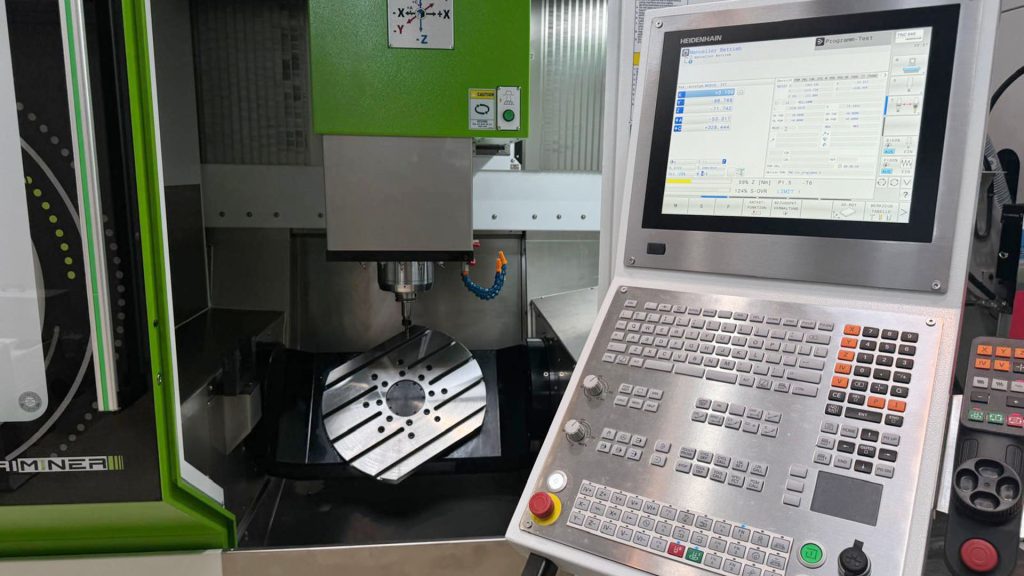

Control	Heidenhain TNC 640
Speed(rpm)	15000
Movement X/Y/Z(mm)	700/550/500
Tool holder	HSK A63
Workpiece diameter max	700 mm

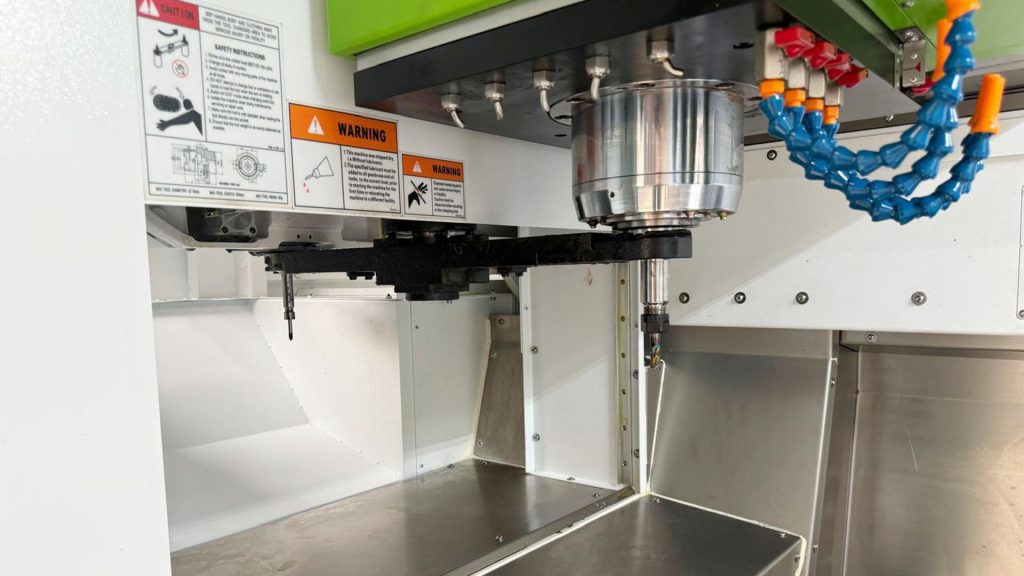

Spindle
Speed	15.000 rpm
Power	33,5 kW
Torque	135 Nm
Tool holder	HSK 63

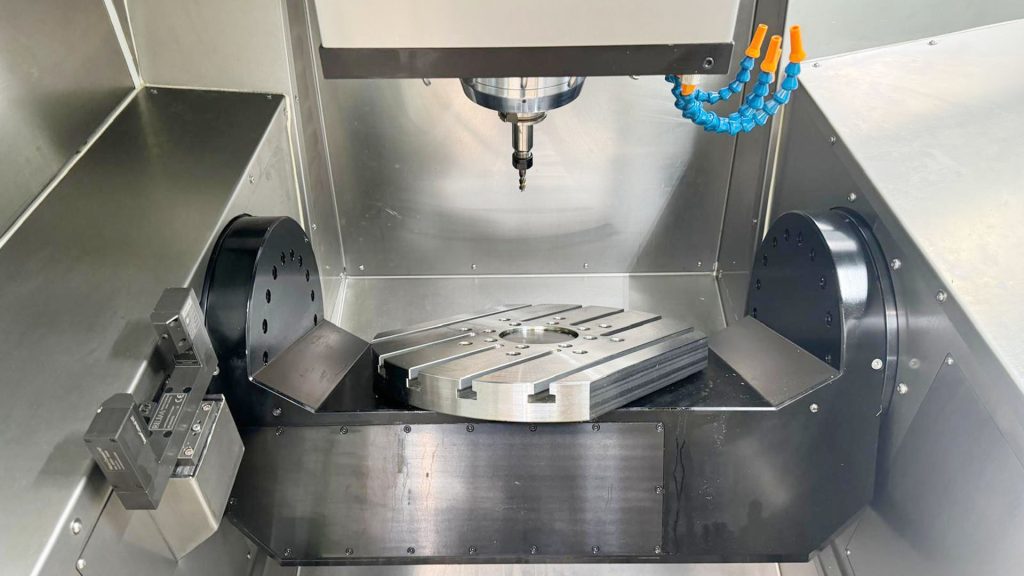

NC-swivel table
B-axis	+30° / -120°
C-axis	360°
Table diameter	400 x 500 mm
Table load max.	300 kg
Tool magazine
Tool changer	Double gripper
Number of stations	60
Tool length max.	300 mm
Equipment
Measuring systems	Direct in all axes (glass scales)
Chip disposal	Chip conveyor
Coolant supply	Internal coolant system, 20 bar
Workpiece measurement	Touch probe
Workpiece measurement	BLUM laser
Set-up mode	Electronic handwheel
