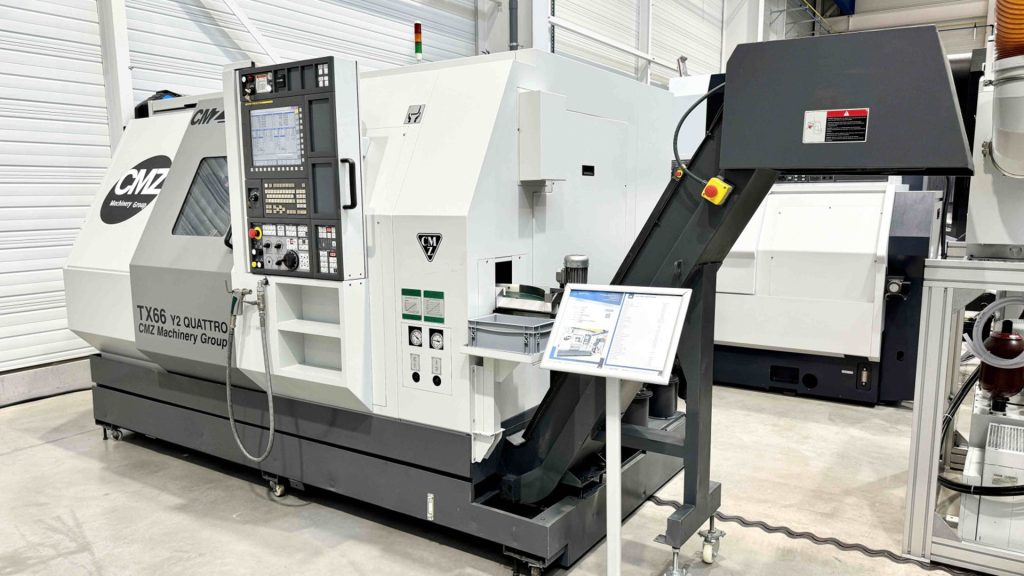

New in CMZ CNC lathe type TX66 Y2 Quattro
Posted by：EurasiacomDate Posted：2024-10

Brand：CMZ? ? Type：TX66 Y2 Quattro? ? Category：CNC lathe

Technical Parameter

CNC control FANUC 31i – MODEL A
Distance between chucks 639 [mm]
Max. turning diameter 255 [mm]
Height of centers over cariage 270 [mm]
Stroke Z1 axis 500 [mm]
Stroke X1 axis 190 [mm]
Stroke Y1 axis +/- 40 [mm]
Stroke Z2 axis 500 [mm]
Stroke X2 axis 190 [mm]
Stroke Y2 axis +/- 40 [mm]
Rapid traverse rate X axis 16000 [mm/min]
Rapid traverse rate Z axis 20000 [mm/min]
Rapid traverse rate Y axis 12000 [mm/min]
Spindle nose ASA 8″ A2
Max. bar diameter 66 [mm]
Spindle throughbore 77 [mm]
Max. spindle speed 4000 [rpm]
Spindle power 15 [kW]
Spindle torque 136 [Nm]
Counter spindle nose ASA 6″ A2
Max. bar diameter counter spindle 52 [mm]
Counter spindle throughbore 61 [mm]
Counter spindle stroke 635 [mm]
Max. counter spindle speed 5000 [rpm]
Counter spindle power 7.5 [kW]
Counter spindle torque 68 [Nm]
Turret indexing time 0.1 [s/pos]
Number of tool stations – Turret 1 12
Number of tool stations driven – Turret 1 12
Max. speed driven tools – Turret 1 6000 [rpm]
Live tools power 18 [kW]
Total power required 65 [kVA]
Supply voltage 400 [V]
Weight 9600 [Kg]
  •
