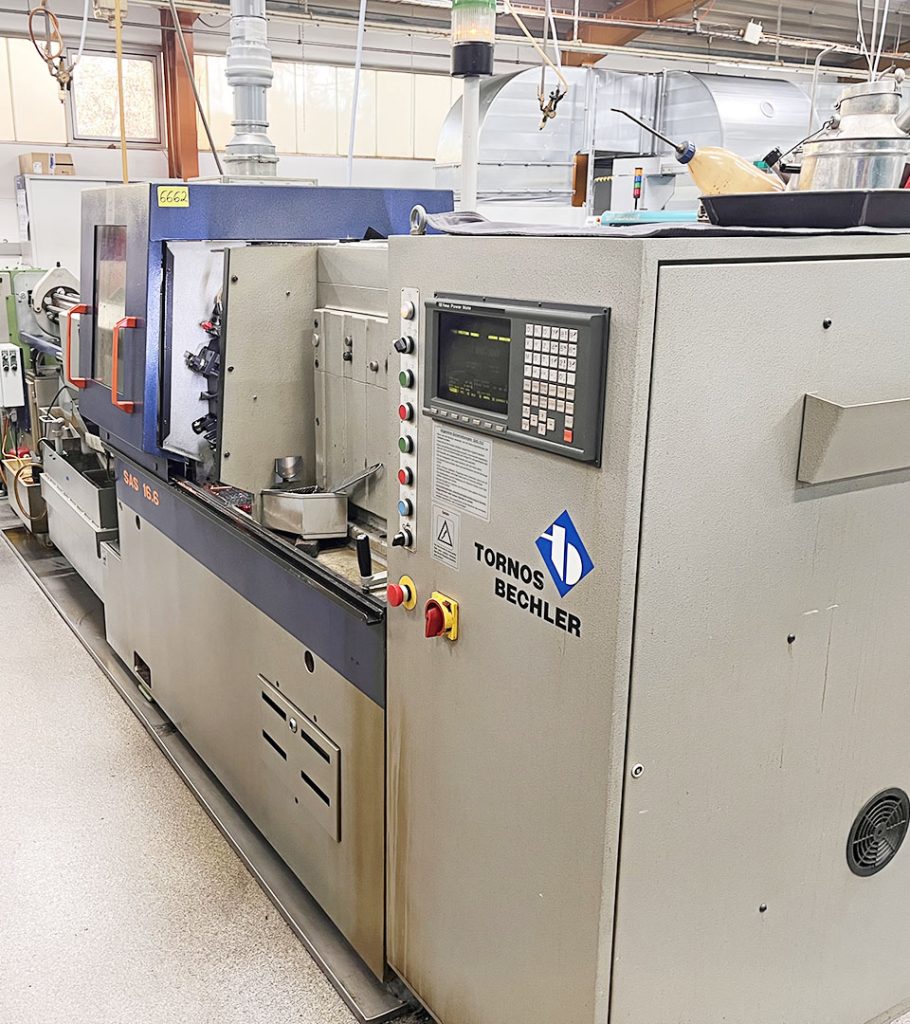

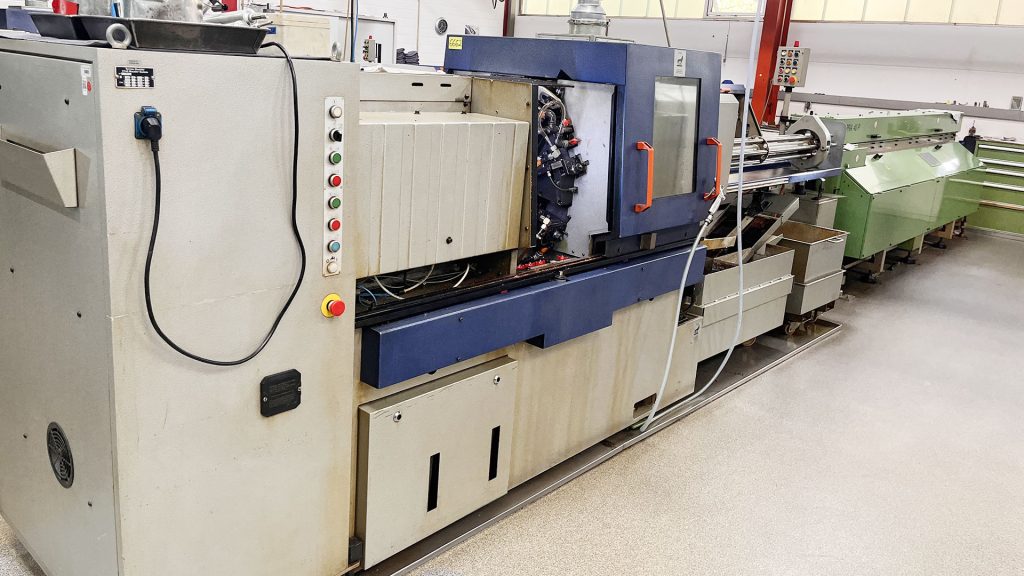

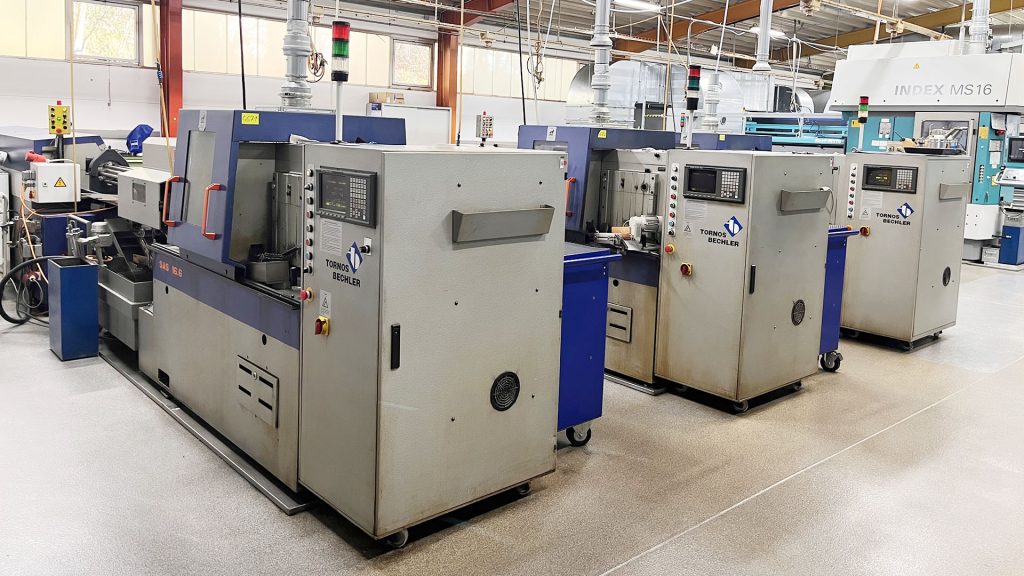

TORNOS CNC lathe type SAS 16.6 in the German factory
Posted by：EurasiacomDate Posted：2025-1

Brand：TORNOS? ? Type：SAS 16.6? ? Category：CNC Lathe

Technical Parameter

Number of spindles 6
Max. capacity Round (diameter) mm 16 (17)
Hex (on ? at) mm 13
Square mm 11
Spindle speed (3 ranges) rpm 800 to 8’000
Range 1 Ratio 1 rpm 800 to 2’000
Range 2 Ratio 2 rpm 800 to 4’000
Range 3 Ratio 3 rpm 800 to 8’000
Production Speed p / min. 3 to 80
Max. length of feed stroke with standard cam mm 63
Max. part length with standard cam mm 52
Max. length of feed stroke with cam for long part mm 85
Max. part length with long part cam mm 75
Number of cross-slides 6
Travel of the cross-slides mm 20
Number of independent advances 4Travel of the independent slide mm 45
Travel of the central slide mm 50
Amount of working degree ° 205
Spindle motor
Max. torque Nm 70 5 2 ft. lbs.
Constant torque up to 1’500 rpm Nm 47,7 35 ft. lbs.
Constant power from 1’500 rpm (50 % ED) kW 7,5 10 HP
Camshaft motor
Nominal torque Nm 5,9
Max. speed rpm 3’000

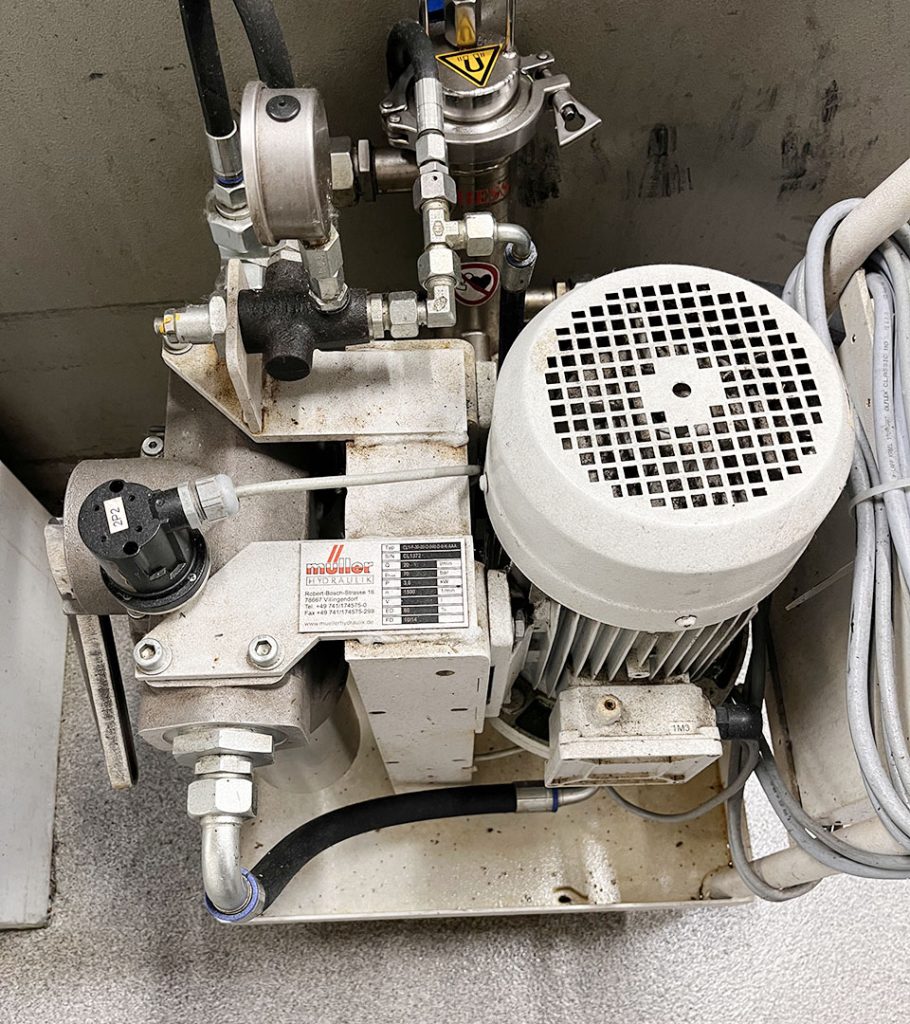

Coolant pump motor 50 Hz
Speed rpm 1’500
Power kW 2,2 3 HP
Pump capacity at 60 Hz
Manufacturing standards In accordance with current EEC Speci? cations

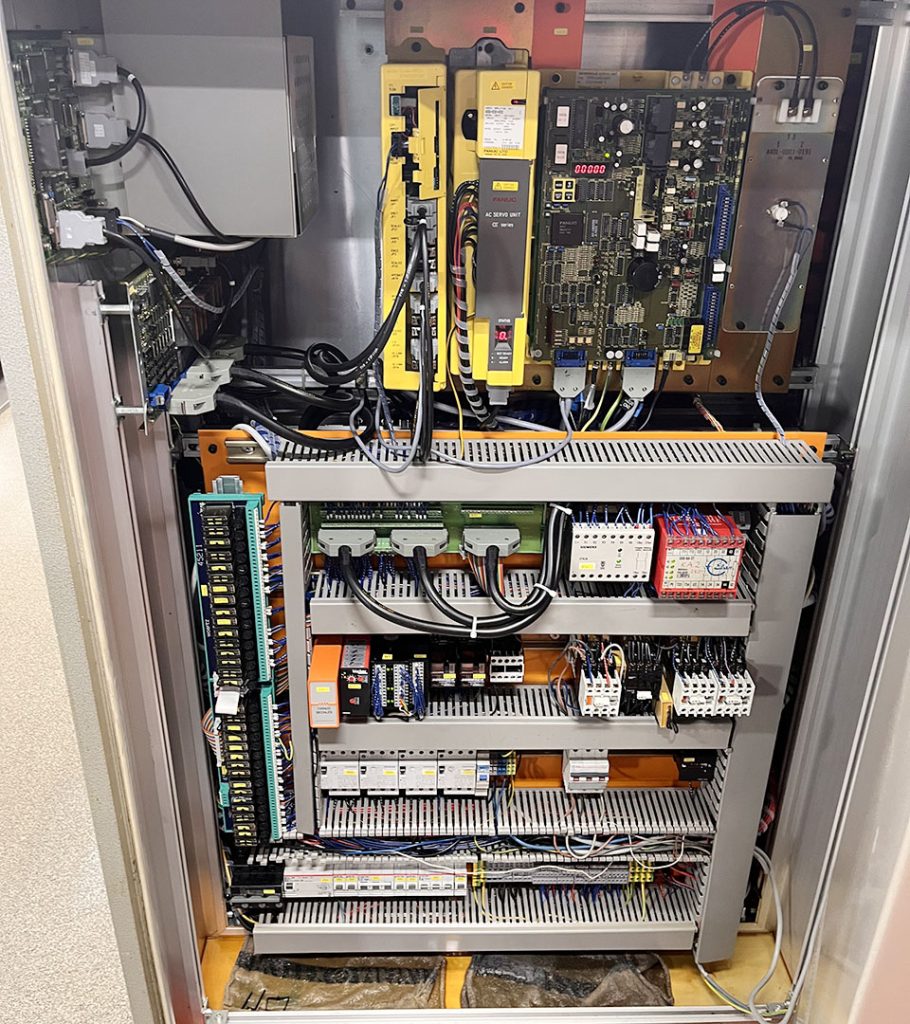

Monitoring system Fanuc
  •
