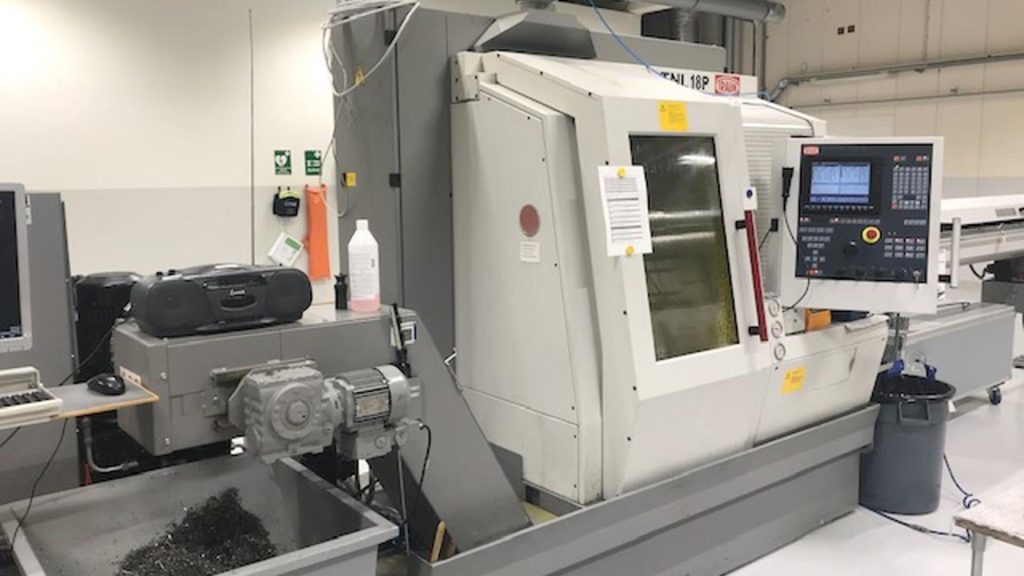

Brand： TRAUB? ? Type：TNL 18P? ? Category：CNC lathe
 |
|
 |
 |
 |
 |
 |
 |
 |
|
 |
|
 |
|
Technical Parameter
| Number of axis total | 7 | |
| Number of spindles | 2 | |
| Turning length | 180 mm | |
| Number of axis total | ||
| Max. bar diameter | 20 mm | |
| Collet device | F25 | |
| Spindle speeds | ||
| stepless | ||
| up to | 8000 rpm | |
| Longitudinal travel (Z-axis) | 205 mm | |
| C axis (spindle,resolution) | 0.001 ° | |

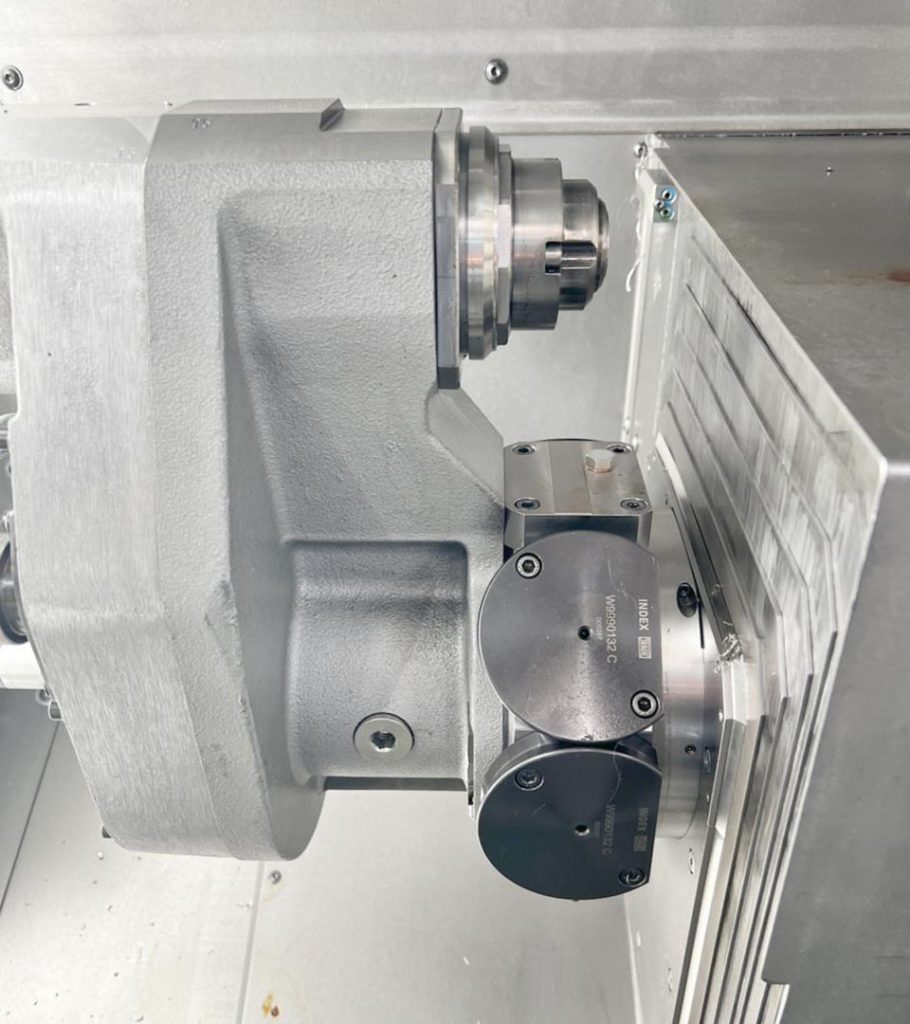

| Back spindle | ||
| up to | 6400 rpm | |
| C axis (spindle,resolution) | 0.001 ° | |
| Turret slide | ||
| numbers | 2 | |

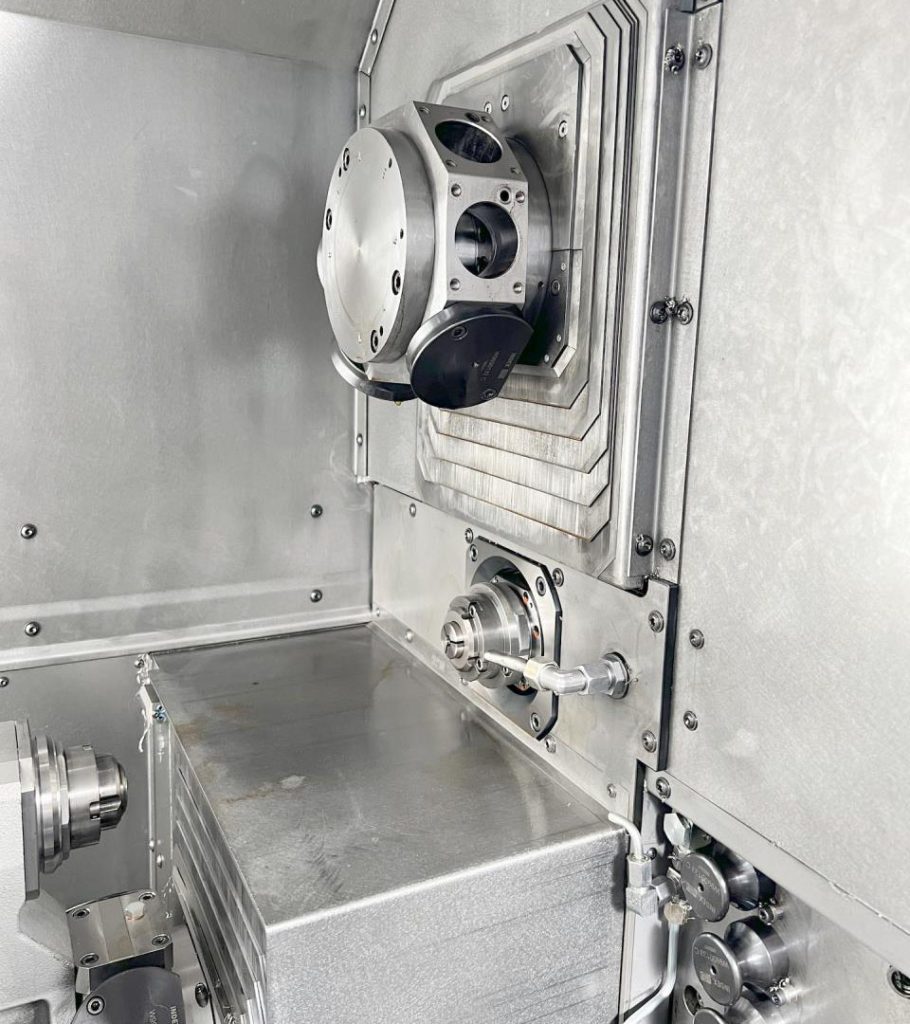

| Upper turret head | ||
| number of tools | 8 | |
| number of driven tools | 8 | |
| Spindle speeds (turning tools) | 12000 rpm | |
| X axis | 120 mm | |
| Lower turret head | ||
| number of tools | 7 | |
| number of driven tools | 7 | |
| Spindle speeds (turning tools) | 6400 rpm | |
| X axis | 120 mm | |
| Z axis | 250 mm | |
| Y axis | -20 / +40 mm | |

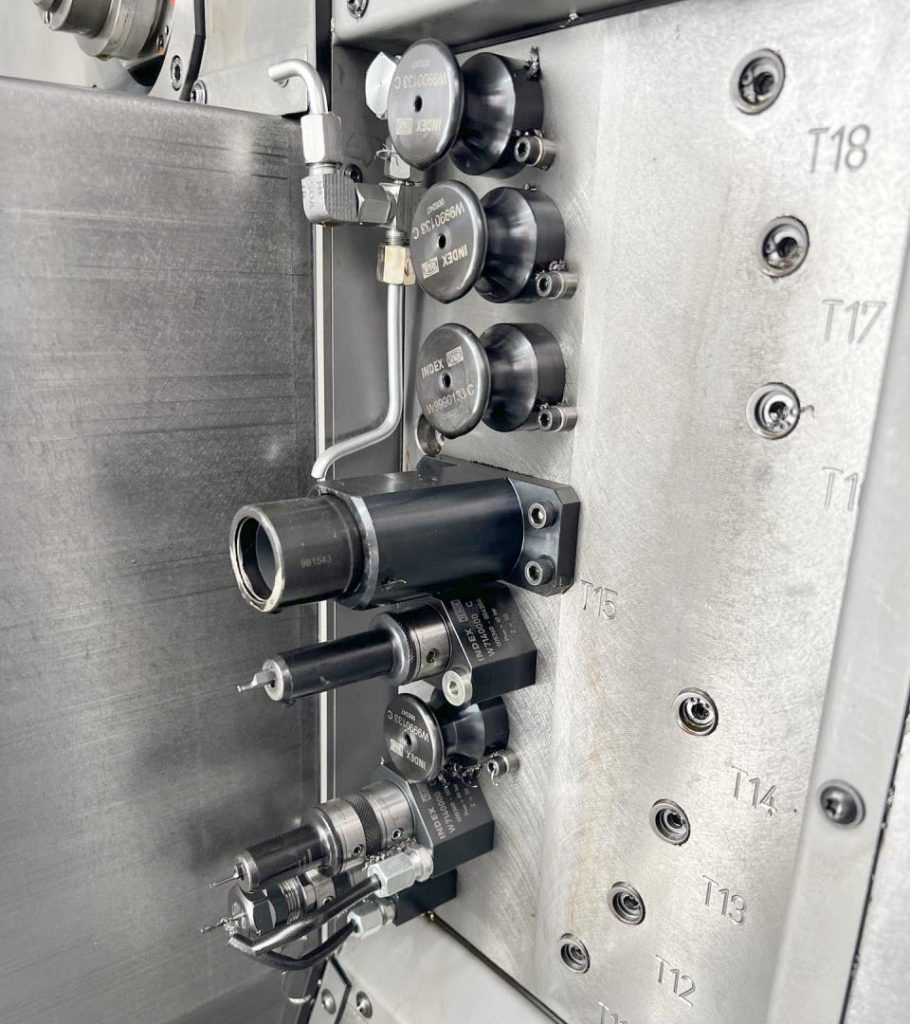

| Counter-operation | ||
| number of tools | 7 | |
| number of driven tools | 3 | |
| Voltage 50 Hz 3x | 400 Volt | |
| Spindle motor | 2.2 / 3.7 kW | |
| Power of back spindle | 1.5 / 2.5 kW | |
| Total power required | 24 kVA | |
| Machine’s weight about | 4000 kg | |
| Overall dimensions machine | ||
| Length | 2500 mm | |
| Width | 1460 mm | |
| Height | 2250 mm | |
| Various accessories | ||
| Driven tools (number) | ||

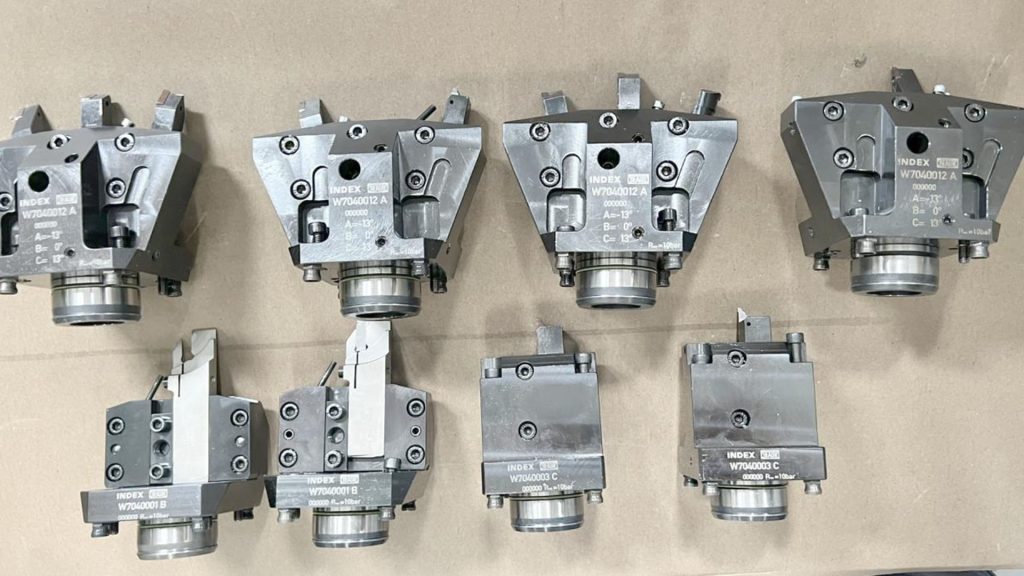

| Toolholders | ||
| Set of toolholders | ||
| Set of quick change inserts | ||
| Bar feeder | ||
| Manufacturer | FMB | |
| Type | minimag 20 | |
| Length of bars max. | 4200 mm | |
| Bar diameter | 2 – 23 mm | |

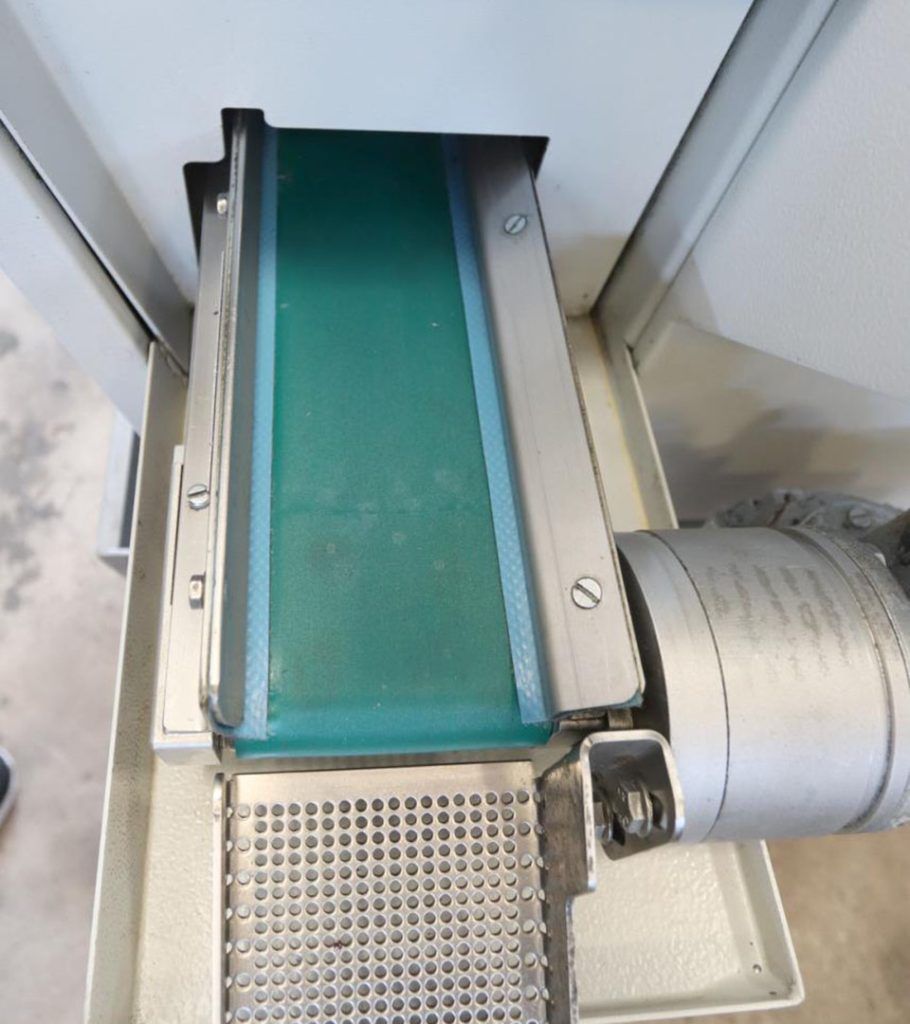

| Workpiece conveyor | ||
| Chip conveyor | ||
| High pression colant device | 30 bar | |
| Water cooler | ||
| Paper filter facility | ||
| Set of reducing bushes | ||
| Tool Presetting block | ||
| Guide sleeve | ||
| Milling attachment | ||
| Lamp | ||
| Fire extinguishing system (without bottle) |
