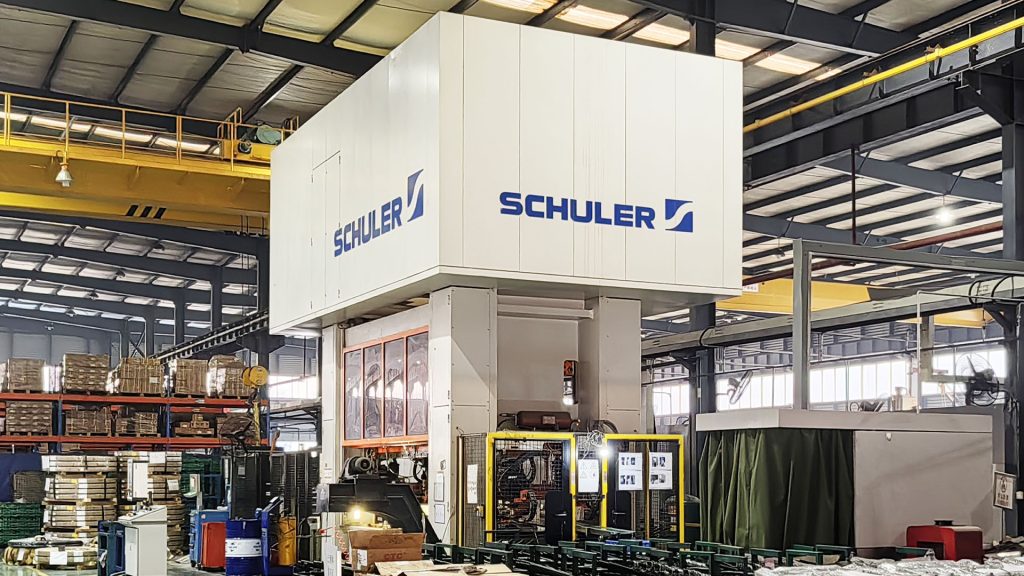

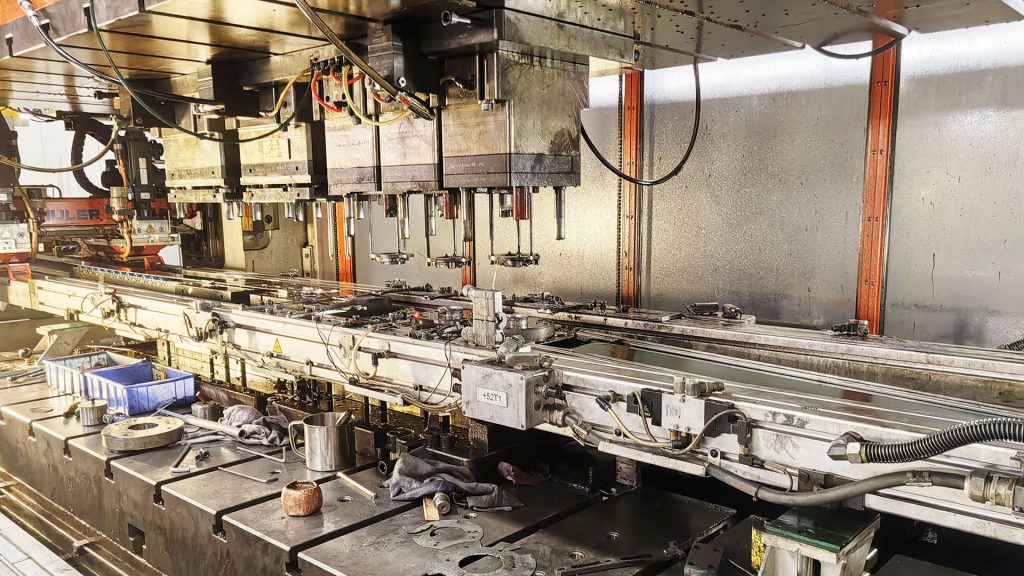

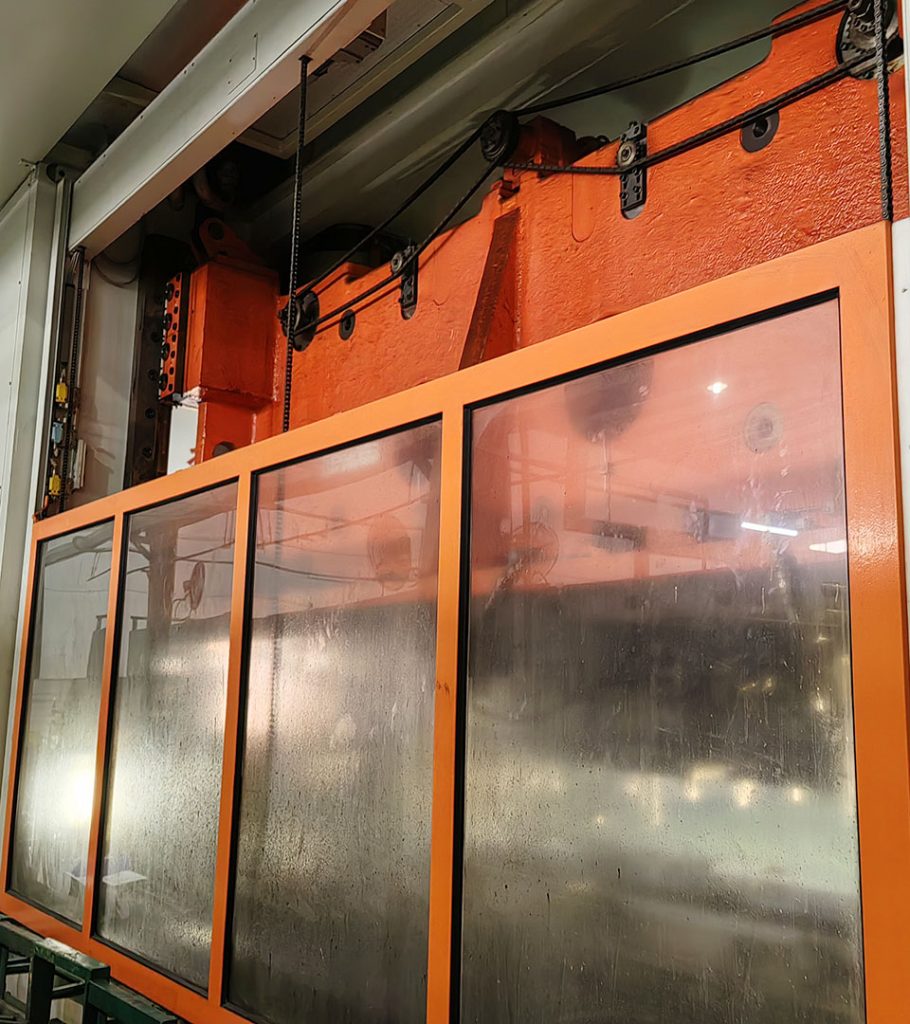

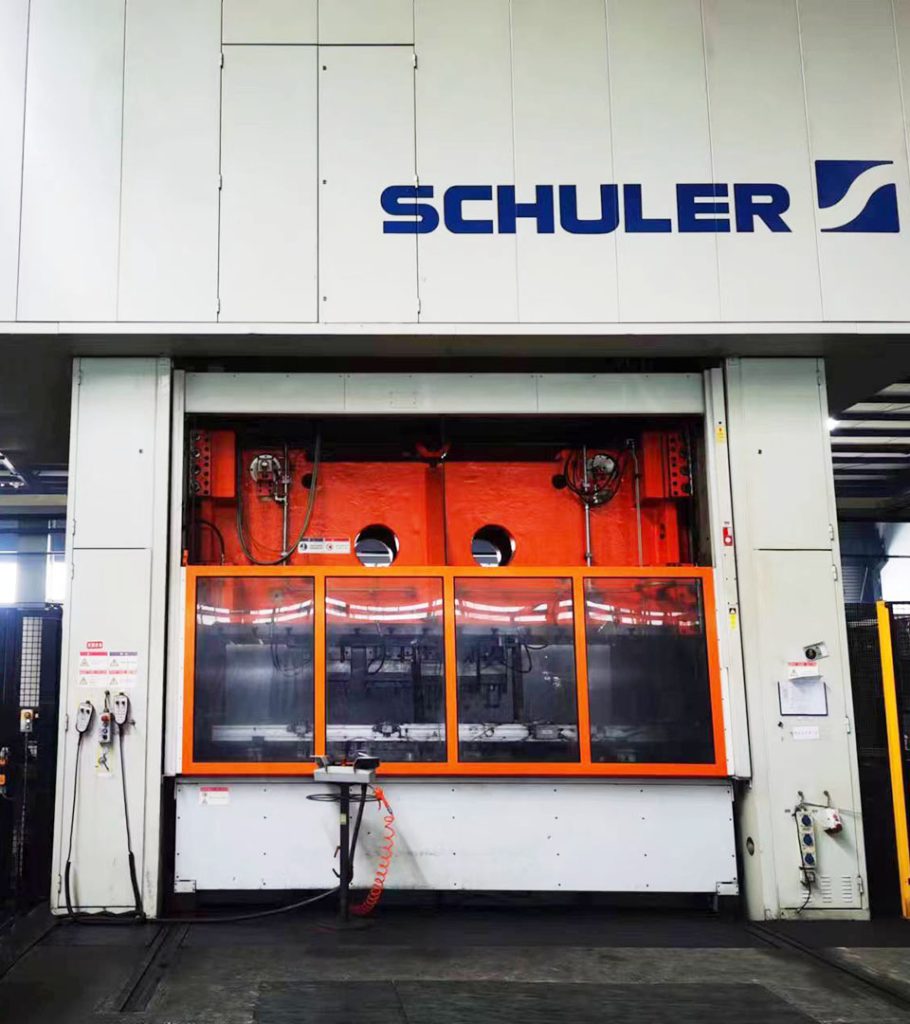

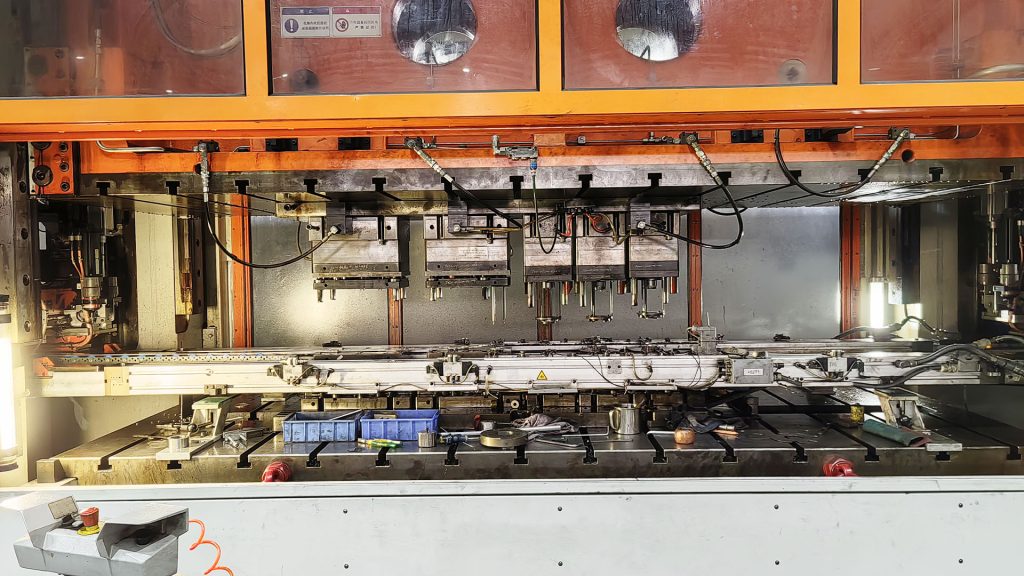

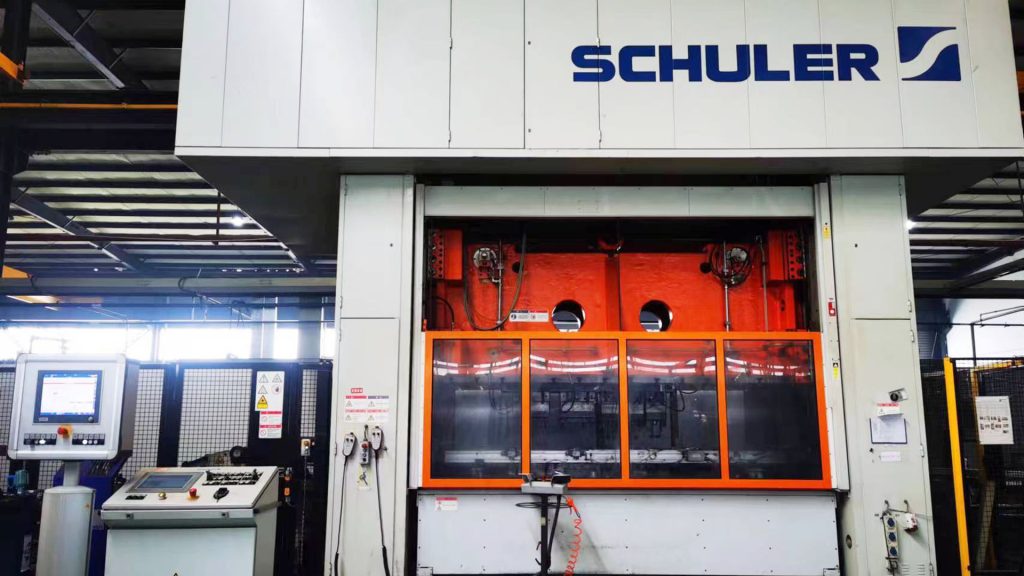

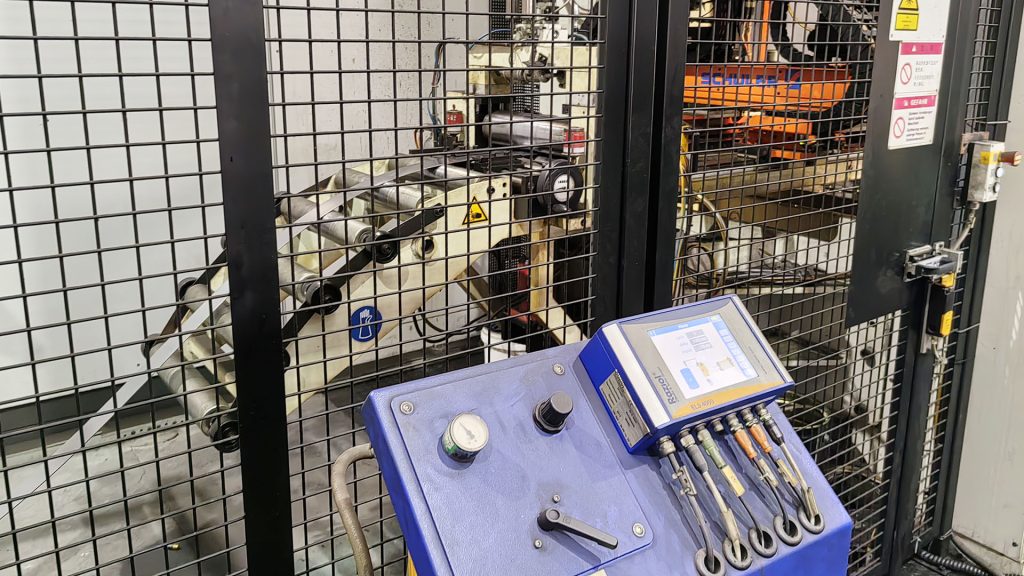

High quality spot SCHULER Presses TMK 2-800-3.66-300
Posted by：EurasiacomDate Posted：2024-1

Brand：SCHULER? ? Type：TMK 2-800-3.66-300? ? Category：Presses

Technical Parameter

Performance data
Nominal force 8.000 kN
Nominal force travel 12 mm
Nominal energy (from stroke rate 40/min) 96 kJ
Press stroke 300 mm
Stroke rate (variable) 10 – 60 per min
Setup stroke rate with reduced work capacity 5 per min
Tool installation height
(press stroke at bottom, slide adjustment+/- 25 mm center), incl. adapter plate		 700 mm
Slide adjustment 200 mm
Slide adjustment, approx. 50 mm/min.
Motor rating main motor 130 kW
Nominal speed main motor 2.678 per min
Dimensions and weights
Weight, approx. 160.000 kg
Height of press, total approx.. 7.770/8.290 mm
Width at table height/width total approx. 5.300/7.500 mm
Depth at table height/total depth approx. 2.500/4.200 mm
Pillar width, approx. 3.690 mm
Lateral pillar opening (width) approx.. 1.330 mm
Table width 3.660 mm
Table depth 1.500 mm
Slide with 3.660 mm
Slide depth 1.400 mm
Paint finish
Head guard RAL 7035 light grey
Corner guard RAL 7035 light grey
Press pillar RAL 7035 light grey
Press slide RAL 2004 pure orange
Switch cabinet RAL 7035 light grey
Power supply
Service voltage 380 V/3/N/PE
Nominal frequency 50 Hz
Control voltage 220 VAC
24 VDC
Voltage tolerance 士10 %
Connection cross-section L1, L2, L3 3 x 120 mm2 per phase
Connection cross-section PE 3 x 120 mm2
Connection cross-section N? 1 x 120 mm2
max. back-up fuse 630 A
Nominal current 480 A
Total power requirement approx. 315 kVA
Pneumatic system
Air connection G 1“ 6 bar
Air consumption approx. 0.2 m3/min
Environment
Temperature +10 to +45°C
Relative. air humidity 80-90 at 40°C %
≤90 at 20°C %
Altitude of location above sea-level ≤1,000 m
Degree of air pollution normal
Flatness of foundations within max.+1 mm
Illlumination min. 300? Lux
Emissions
Sound intensity < 85 dB
  •
